Description

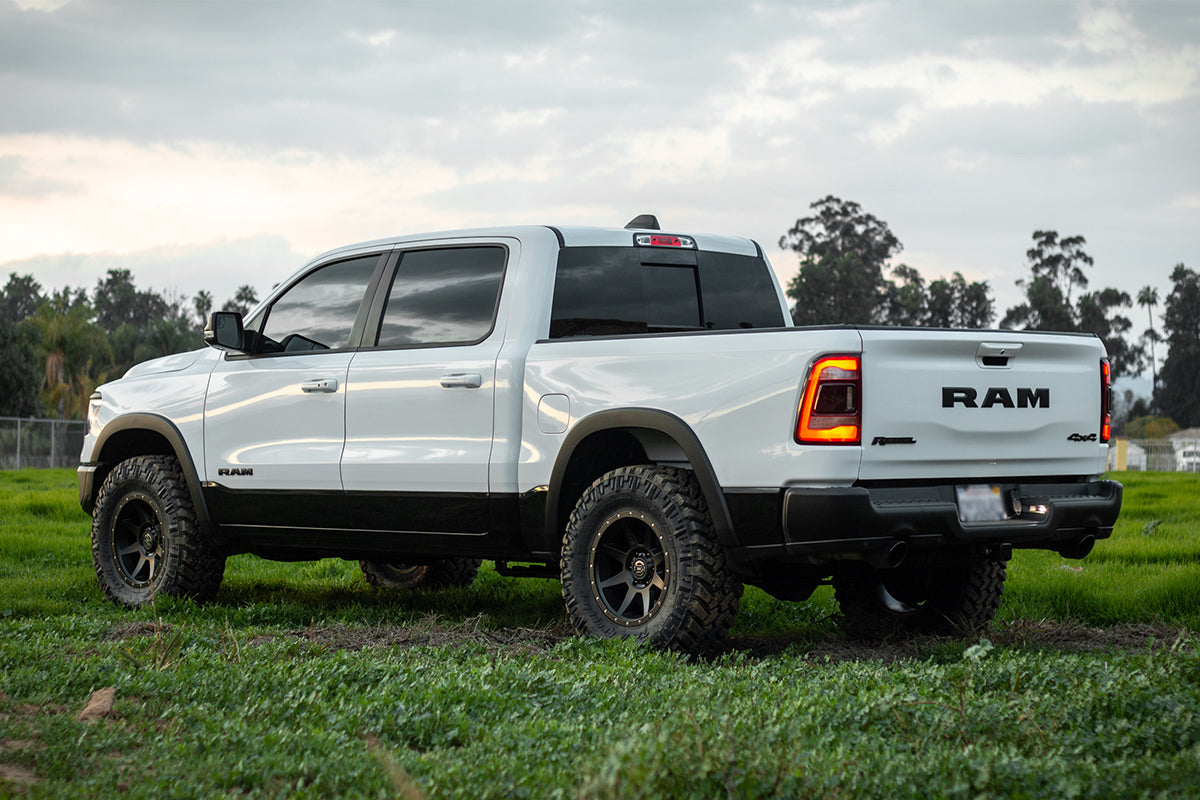

With several changes being made to the 2019 RAM 1500 platform including an all-new frame, increased chassis rigidity, and a lighter overall weight, ICON's R&D department went above and beyond to make sure the new RAM truck was properly analyzed. With these changes made by the factory, the development of new ICON rear shocks (and revised front coilover tuning) was necessary to optimize fitment and performance on this new platform.

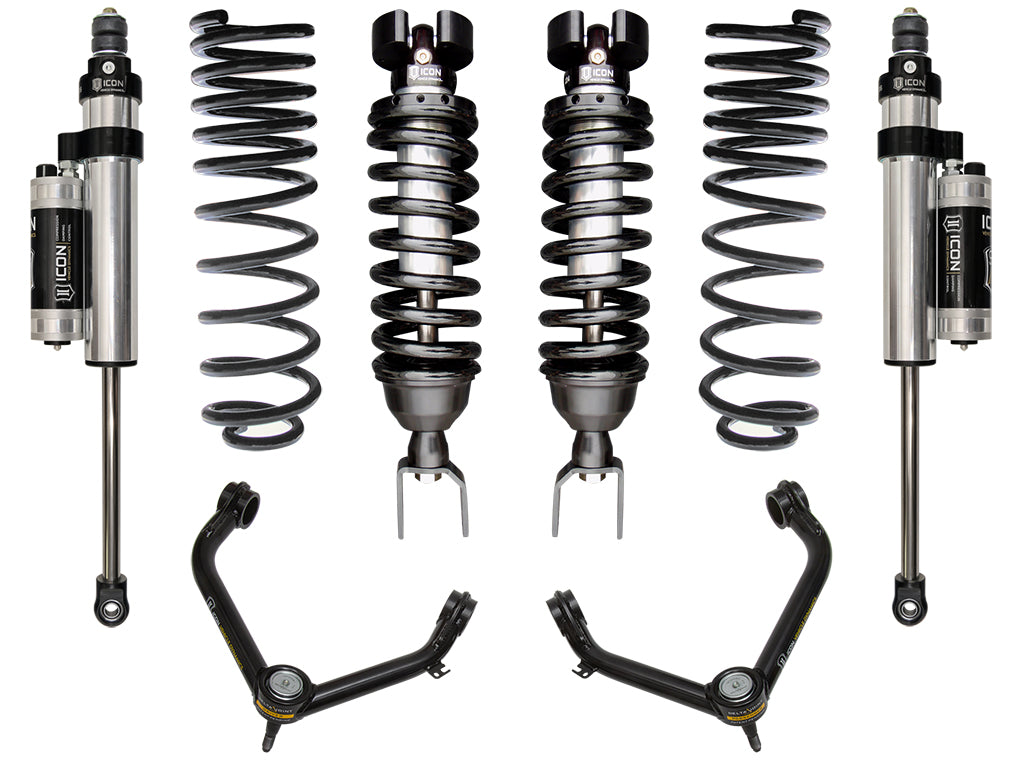

Features and Benefits:- ICON Vehicle Dynamics Dodge Ram 1500 suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers' primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 5 system includes vehicle-specific tuned 2.5 Inch coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered coil springs for superior vehicle Inchfeel Inch through the range of travel. These coilovers are also height adjustable from 0-1.5 Inch of lift over stock, allowing the use of larger, more aggressive wheel and tire combinations. ICON's tubular steel upper control arms with Delta Joints are included for additional strength and improved suspension geometry for more predictable handling. ICON 2.5 Aluminum Series CDCV piggyback reservoir rear shocks offer compression damping adjustability and when paired with 1.5 Inch lift, dual rate rear coil springs balance the performance of the truck from front to rear. The ICON Vehicle Dynamics 2019-UP Ram 1500 Stage 5 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
- This system features upper control arms with ICON's patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.
- Adjustable coilovers from 0-1.5 Inch of lift height allow for fitment of larger and more aggressive tires
- Patented Delta Joint (U.S. Pat. 10,731,700) combines the durability and weather resistance of a ball joint with the performance characteristics of a uniball
- 1.5 Inch lift, dual rate rear coil springs offer incredible ride quality and increased suspension performance
- Fits 2WD & 4WD applications
- 6061 Aircraft grade aluminum CNC machined components
- Shocks are fully rebuildable and revalvable
- 100 Percent Bolt-on system - no drilling, cutting, or welding necessary for install
- ICON 2.5 Series shocks feature vehicle specific tune for superior performance and ride quality
- Easy-to-adjust CDC Valve (Compression Damping Control) allows for end-user compression damping changes to suit all types of terrain and vehicle cargo configurations
- Corrosion resistant CAD plated coilvoer shock bodies with 7/8 shafts
- Rear 2.5 Aluminum Series piggyback shocks feature one-piece impact extruded aluminum cylinders and 7/8 Inch shafts
- FK rod end bearings for extended longevity and minimal deflection
- ICON upper control arms improve suspension geometry for predictable handling
- Bushings Included: Yes
- Coils Quantity Front: 2.0
- Coils Quantity Rear: 2.0
- Grade Type: Performance
- Maximum Lift: 1.5 Inch
- Mounting Hardware Included: Yes
- Oem Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: 33 Inch X 11.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required)
- Recommended Aftermarket Wheels: Icon Alloys - 20x9 Inch W/ 5 Inch Backspace / 0mm Offset, Icon Alloys - 18x9 Inch W/ 5 Inch Backspace / 0mm Offset
- Shocks Included: Yes
- Spring Color: Black
- Spring Material: Steel
- Add On Part: 198001 - Billet Spanner Wrench Kit, 191011 - Tubular UCA Billet Cap Set, 198000 - 2 Pin Coilover Spanner Wrench Kit, 191003 - Icon Short 2.5 Coil Wrap W/Logo Pair (11.25-12.25)
/
