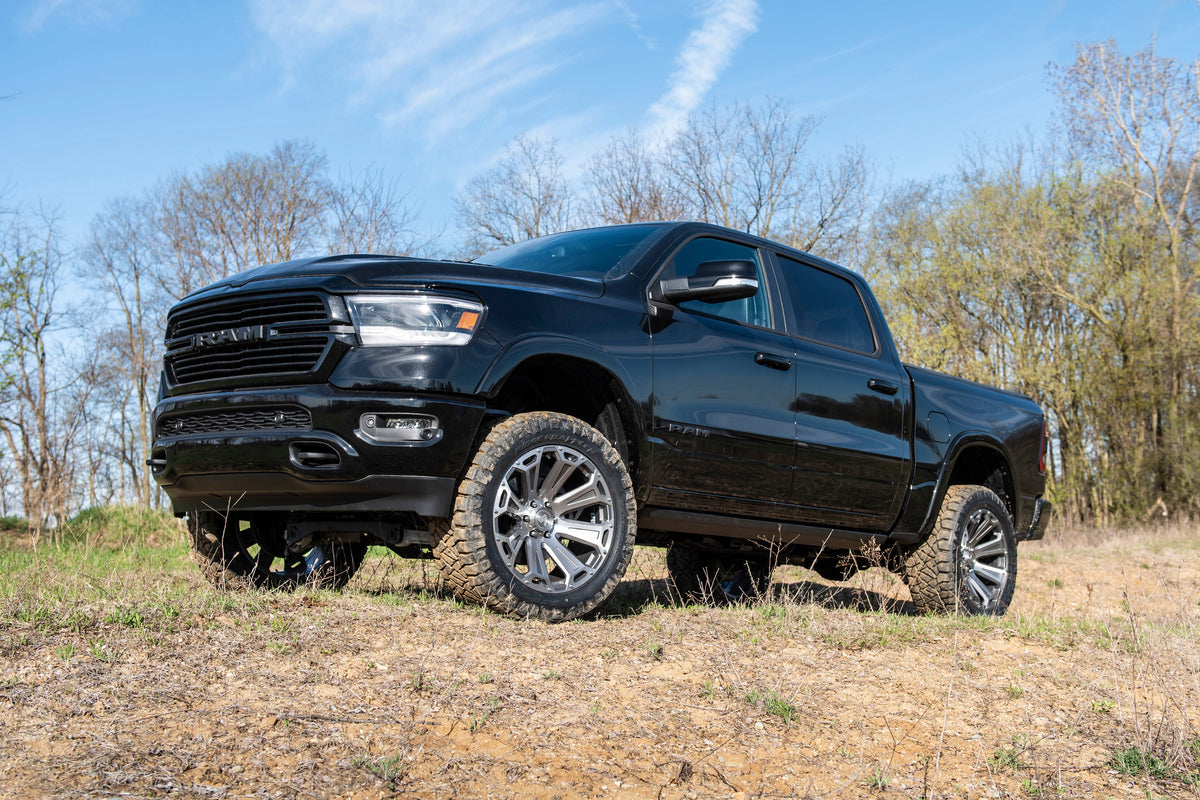

BDS steps up the performance and capability of the 2019-2024 RAM 1500 trucks with a 4-inch suspension lift kit. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch tires
This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes top mounted strut spacers, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection.
Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles and replacement tie rod ends allowing for ESC system compatibility. These combined with the provided sway bar drops, bump stop extensions, stainless steel braided brake lines, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.
In the rear this kit utilizes progressive rate Pro-Ride coil springs, rear upper control arm relocation brackets to correct pinion angle, track bar relocation bracket to correct axle positioning, bump stop extensions, and sway bar links. The rear of these kits are rounded out with your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 IFP performance series gas shocks to offer improved damper performance.
High Clearance Crossmembers
BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.
Heavy Duty Steering Knuckles
BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.
Features and Benefits:
- High clearance crossmember design maximizes ground clearance
- Robust steering knuckles maintain ESC system compliance
- HD skid plate system improved offroad protection
- Multipoint differential relocation brackets to secure the front axle and improve CV angles
- BDS NX2 gas or FOX performance series IFP gas shocks to improved ride and offroad performance
- Factory Protection Plus drivetrain warranty included
Recommended Tires and Wheels:
- (Trimming may be required)
- 35 x 12.5 with 18 x 9 and 5 in. Backspace
- 35 x 12.5 with 20 x 9 and 5 in. Backspace
- OE Knuckle Type
- RAMs with factory 22 inch wheels require the larger bore knuckles due to larger wheel bearing assembly. Reference build code WPM or WPZ.
FOX 2.0 Performance Series:
- 2-inch Impact extruded aluminum body
- Internal floating piston (IFP) monotube design
- CNC machined 6061-T6 aluminum mounting ends
- Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish
Details:
-
Finish: Powdercoat
-
Color: Black
-
Front Lift Height: 4.0 Inch
-
Rear Lift Height: 3.0 Inch
-
Fuel Type: Gas
-
Lift Height: 4.0 Inch
-
Lift Type: Suspension Lift
-
Engine Years: 2019-2023

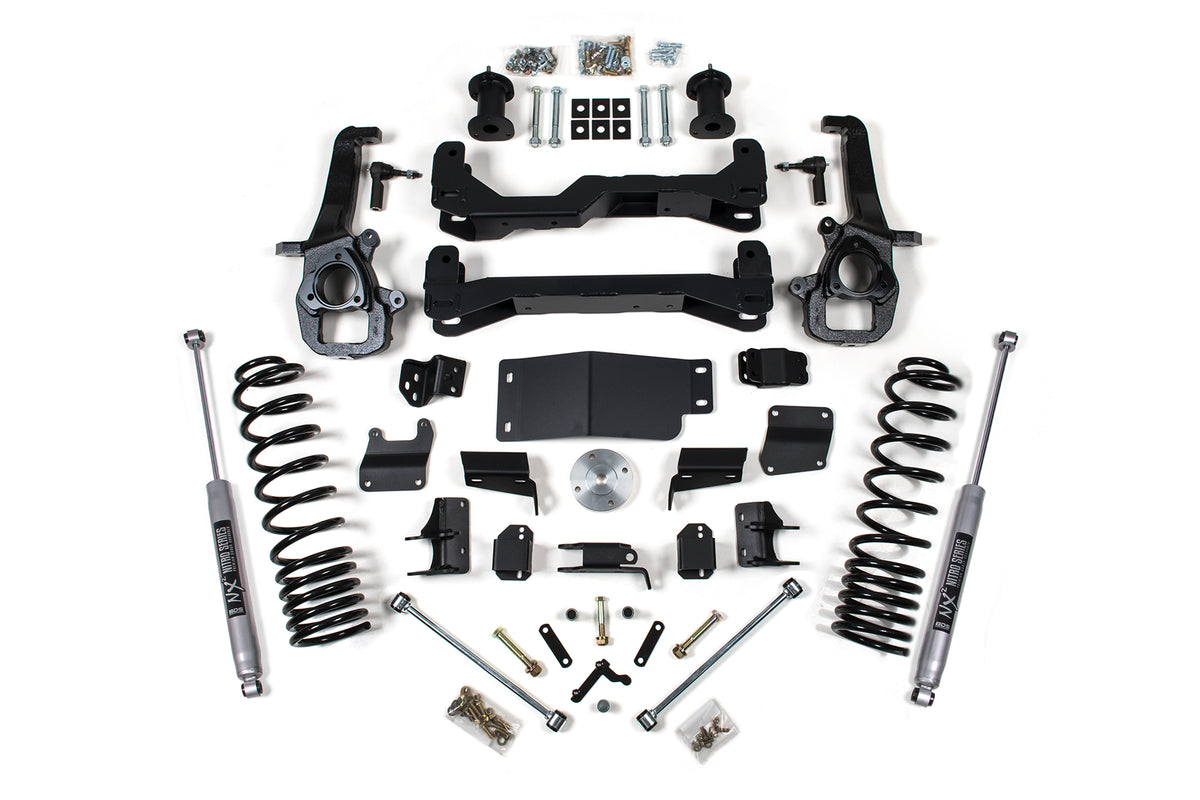

Kit Components:
- Includes one BDS022404, 2019-2023 Ram 1500 4 Inch Strut Spacer Box Kit, UPC Code 658848615391
- Includes one BDS022508, 2019-2023 Ram 1500 Rear Box Kit, UPC Code 658848615407
- Includes one BDS022632, 2019-2023 Ram 1500 Knuckle Box Kit - DRV, UPC Code 658848615520
- Includes one BDS022633, 2019-2023 Ram 1500 Knuckle Box Kit - PASS, UPC Code 658848615537
- Includes one BDS022642, 2019-2023 Ram Front Box Kit 1 of 2, UPC Code 658848615575
- Includes one BDS022643, 2019-2023 Ram Front Box Kit 2 of 2, UPC Code 658848615582
- Includes one BDS032308, 2019-2023 Ram 1500 3in Rear Coil Box Kit, UPC Code 658848616350
Components by Option:
NX2 Nitro Series / Standard (BDS1663H):
- Includes two BDS85750, Shock- 27.40 x 16.20 x 2-3/8 - S50/EB2, UPC Code 711745609600
FOX 2.0 Performance Series / Standard (BDS1663FS):
- Includes two FOX98224807, Fox 2.0 Shock 27.57 x 16.95 x 2- S50/EB1, UPC Code 711745613546
