The ICON Vehicle Dynamics Stage 1 EXP complete suspension system for the 2019-2023 GM 1500 pickup represents our entry level performance suspension system, providing improved on- and off-road performance as well as front-end lift and leveling for a proper stance and fitment of up to 35 Inch tires. This system features the innovative new 2.5 EXP series coilover shocks along with our proven 2.0 nitrogen charged monotube shock with internal reservoir for the rear.
Features and Benefits:

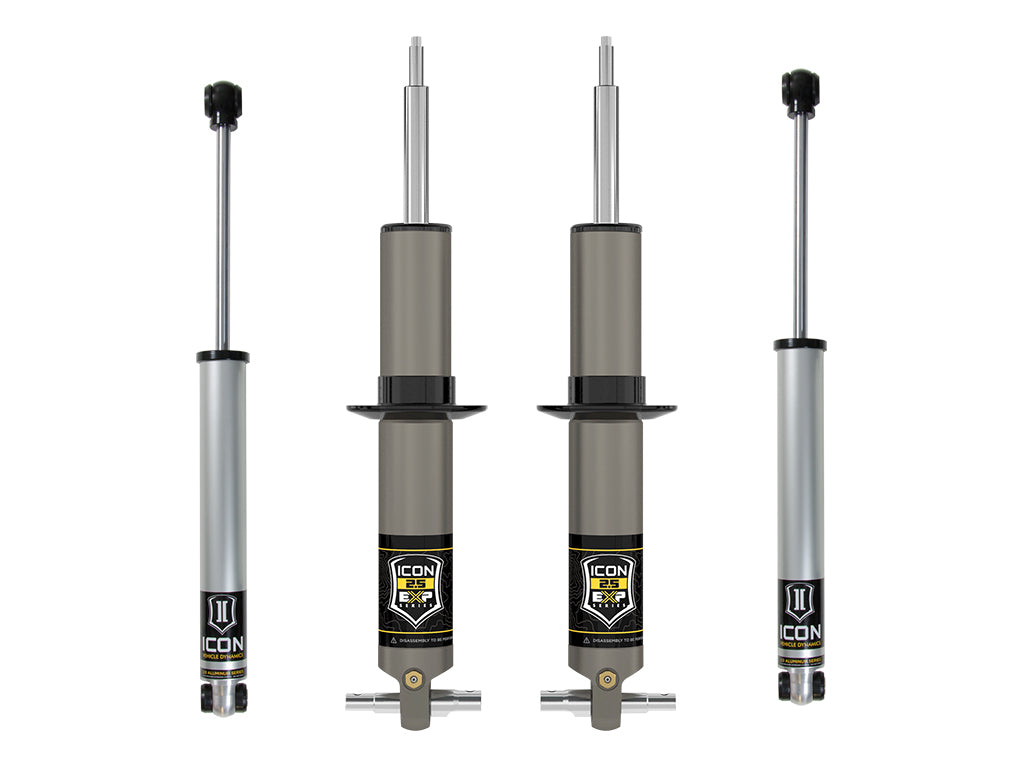

- This Stage 1 system features the 2019-2023 GM 1500 EXP Series front shock absorbers that combine the performance of a fully rebuildable 2.5-inch diameter premium shock absorber with the convenience and cost-benefits of re-using the truck's factory coil spring and other components. EXP bridges the gap between spacer lifts and threaded bodied coilovers, providing suspension lift, custom-tuned performance and maximum travel, all in an economical package.
- Rounding out the Stage 1 EXP suspension system are V.S. 2.0 Aluminum Series rear shocks specially tailored for the 2019-2023 GM 1500. The 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Their pairing with the ICON 2.5 EXP Series front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Silverado 1500 or Sierra 1500.
- Vehicle specific design for 2019-2023 GM 1500 pickups

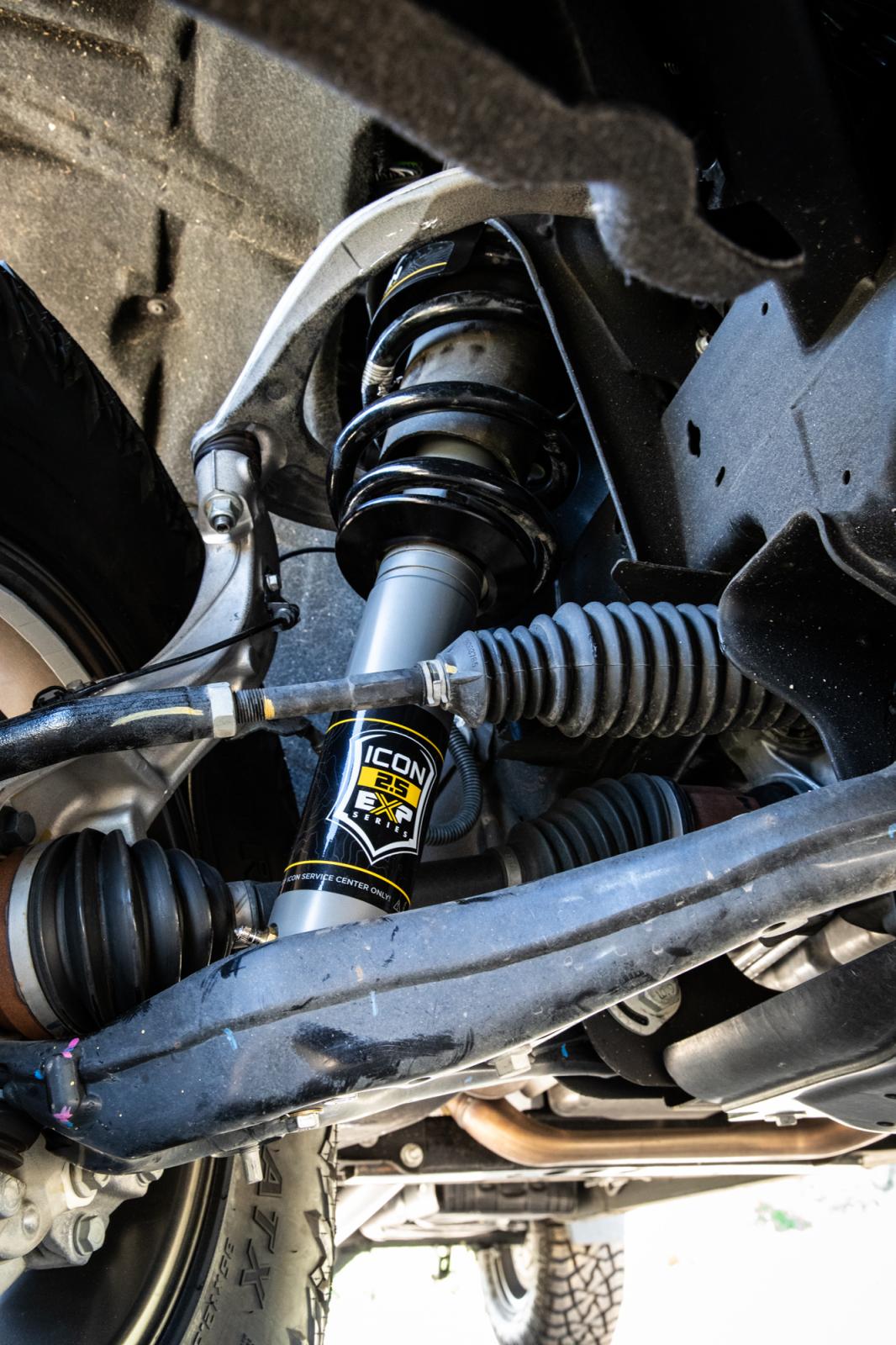

- 2.5 EXP Series front shocks with internal reservoirs utilize factory coil and coil hardware
- Adjustable front ride heights from 2.375-3.75 Inch of front lift over stock with the use of snap ring (lift heights vary slightly depending on trim/engine)
- One-piece, impact extruded, hard anodized aluminum cylinders offer excellent corrosion resistance and consistent finish
- 7/8 Inch diameter induction hardened, chrome plated shock shaft with inverted shaft-up design
- 2.0 Aluminum Series rear shocks provide balanced tune with coilovers and increased performance
- CNC machined 6061 aluminum components with a black anodized finish
- All ICON shock absorbers are fully rebuildable and re-tunable
Details
- Bushings Included: Yes
- Grade Type: Performance
- Maximum Lift Front: 3.75 Inch
- Minimum Lift Front: 2.375 Inch
- Mounting Hardware Included: Yes
- Shocks Included: Yes
