Through an accelerated testing process dubbed the InchICON1K Inch R&D program, ICON has logged over a thousand miles in the dirt pushing the JL to off-road extremes to identify limiting factors in OE components, develop products that remove these limits, and further extrapolate performance out of this vehicle. This 2.5 Inch suspension system has been tweaked, tuned, and revised several times over the course of this ICON1K testing in an effort to provide unparalleled ride quality and vehicle dynamics for everything from rock crawling to high-speed desert running.
Features and Benefits:

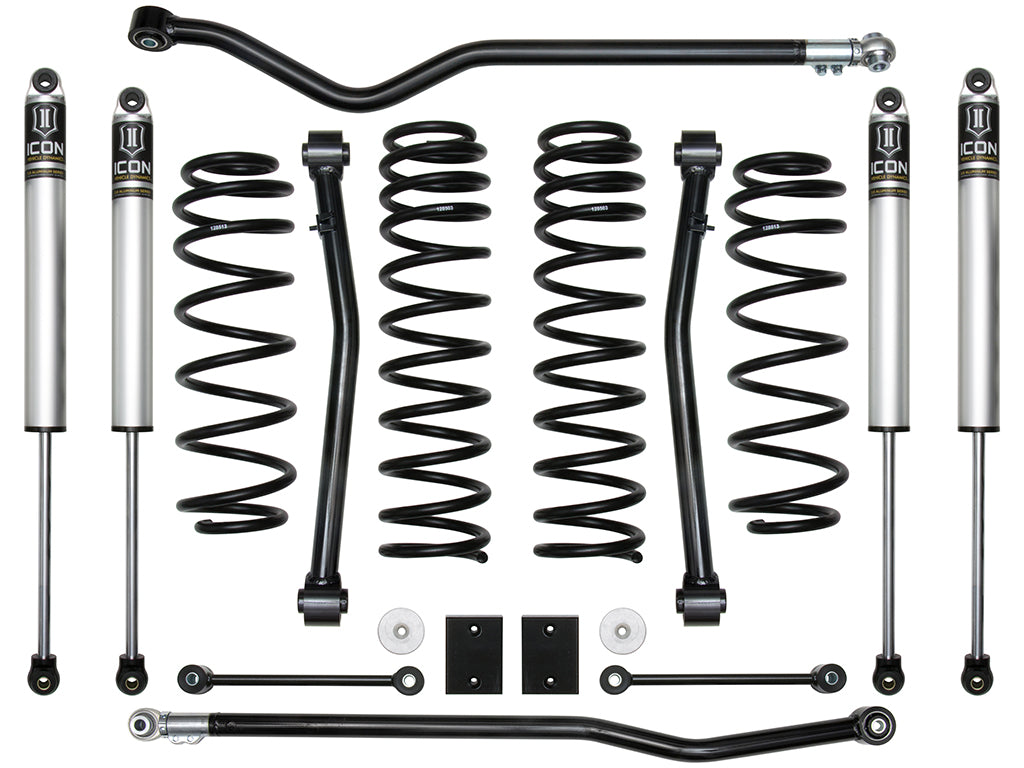

- The ICON Vehicle Dynamics Stage 3 2.5 Inch Suspension System for the 2018-UP Jeep Wrangler JL is designed for the driver looking to drastically improve the performance and ride quality of their vehicle. This Stage 3 system includes 2.5 Inch lift dual rate coil springs, Vehicle Specific 2.0 Aluminum Series shocks, adjustable front upper links, tubular steel front lower links, adjustable front and rear track bars, bump stop spacers, sway bar links, and all necessary hardware to complete the installation. With this combination of components, ICON was able to increase wheel travel numbers by over 30 Percent (3 Inch front, 2 inch rear), redefining the potential of the 2018-UP JL. The front lower links included with this system are constructed from thick wall steel tubing, provide increased castor numbers, and feature dual durometer bushings for noise free operation, maximum articulation, and minimal bind. The Stage 3 system allows for fitment of 35 Inch tires when used with ICON's recommended wheel specifications. For users looking to install 37 Inch tires, an optional bump stop spacer kit (PN: 22029) is available.
- Holistic Engineering - the ICON Difference: When developing suspension components for a new vehicle, ICON takes a different approach than many others. Rather than focusing in on one particular part, ICON engineers look at the vehicle as a whole, identify inherent strengths and weaknesses, and set a target for performance. With a focus on maximizing wheel travel and improving ride quality, ICON will develop components that address (and often times replace) OE limiting factors. This holistic engineering philosophy often results in the development of several parts designed to work together as a system to provide a balanced on and off-road performance upgrade. Because ICON is designing and manufacturing all of the components necessary to improve the performance of a vehicle from front to back, end-users can rest easy knowing they are dealing with ONE manufacturer, ONE standard of quality, and ONE awesome warranty to back it all up.
- 2.5 Inch lift height
- Fits 35 Inch tires (37 Inch with optional bump stop spacer kit PN: 22029)
- 3 Inch front, 2 inch rear increase in wheel travel
- Improves on and off-road ride quality over stock
- Dual rate coil springs with lifetime guarantee against sagging/breakage
- 2.0 Aluminum Series shocks with vehicle specific valving
- Tubular steel link arms with dual durometer bushings for noise free performance, maximum articulation, and minimal bind
- 100 Percent bolt-on system makes for an easy install
- InchICON 1K Inch tested under rigorous off-road conditions to validate tune, performance, strength, and durability
Details
- Bushings Included: Yes
- Coils Quantity Front: 2.0
- Coils Quantity Rear: 2.0
- Dual Rate Coil Springs: Yes
- Grade Type: Performance
- Maximum Lift: 2.5 Inch
- Mounting Hardware Included: Yes
- Oem Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: 35 Inch X 12.50 Inch (37 Inch X 12.50 Inch With Optional Bump Stop Spacer Kit Part # 22029)
- Recommended Aftermarket Wheels: (Rubicon) Icon Alloys - 17x8.5 W/ 4.75 Inch Backspace / 0mm Offset, (Rubicon) Icon Alloys - 18x9 W/ 4.5 Inch Backspace / -12mm Offset, (Non-Rubicon) Icon Alloys - 18x9 W/ 4.5 Inch Backspace / -12mm Offset, (Non-Rubicon) Icon Alloys - 20x9 W/ 4.5 Inch Backspace / -12mm Offset, (Non-Rubicon) Icon Alloys - 17x8.5 W/ 4.5 Inch Backspace / -6mm Offset, (Rubicon) Icon Alloys - 20x9 W/ 4.5 Inch Backspace / -12mm Offset
- Shocks Included: Yes
- Spring Color: Black
- Spring Material: Steel
- Add On Part: 191014 - .25 Inch Collar Spanner Pin Wrench
