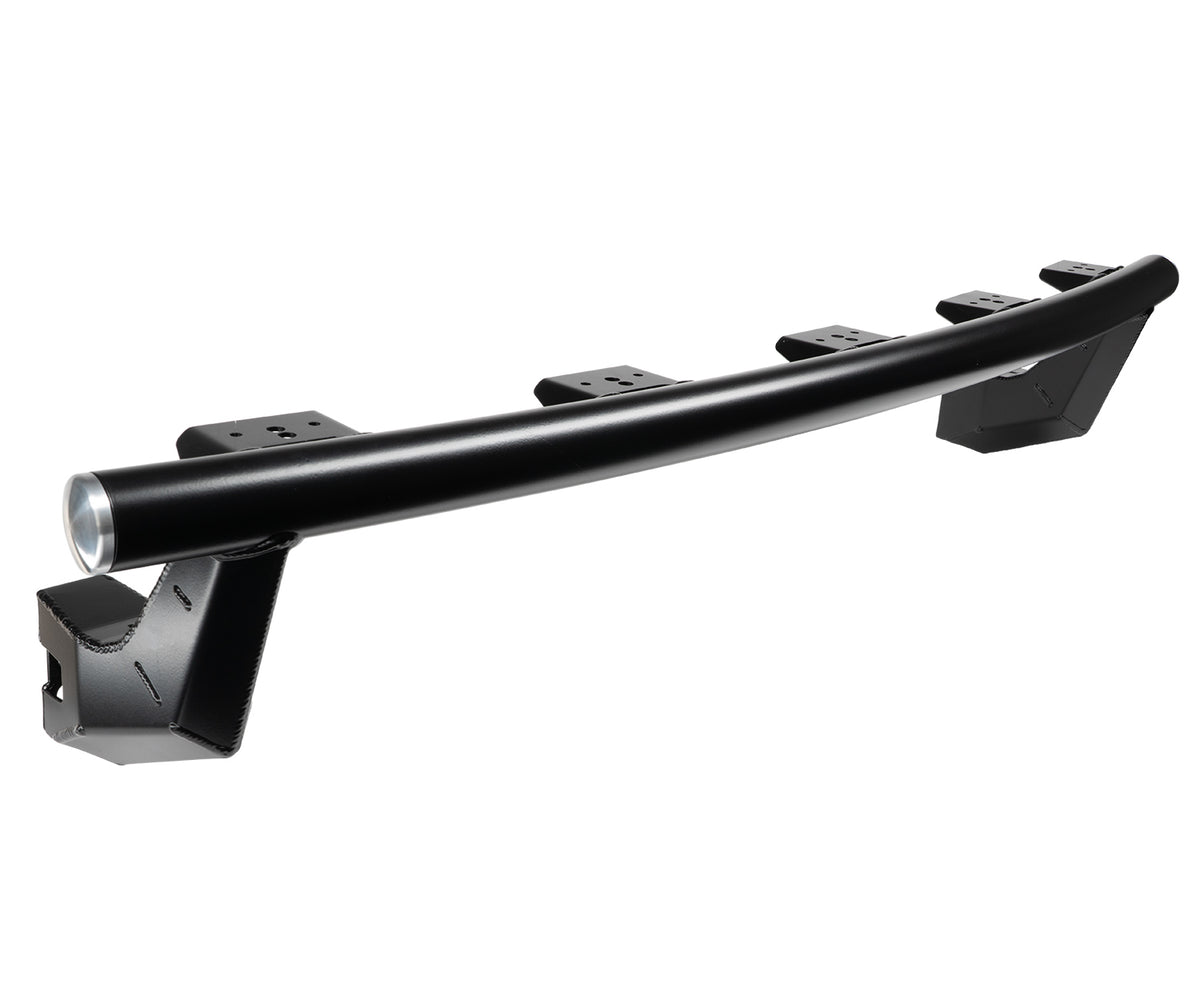

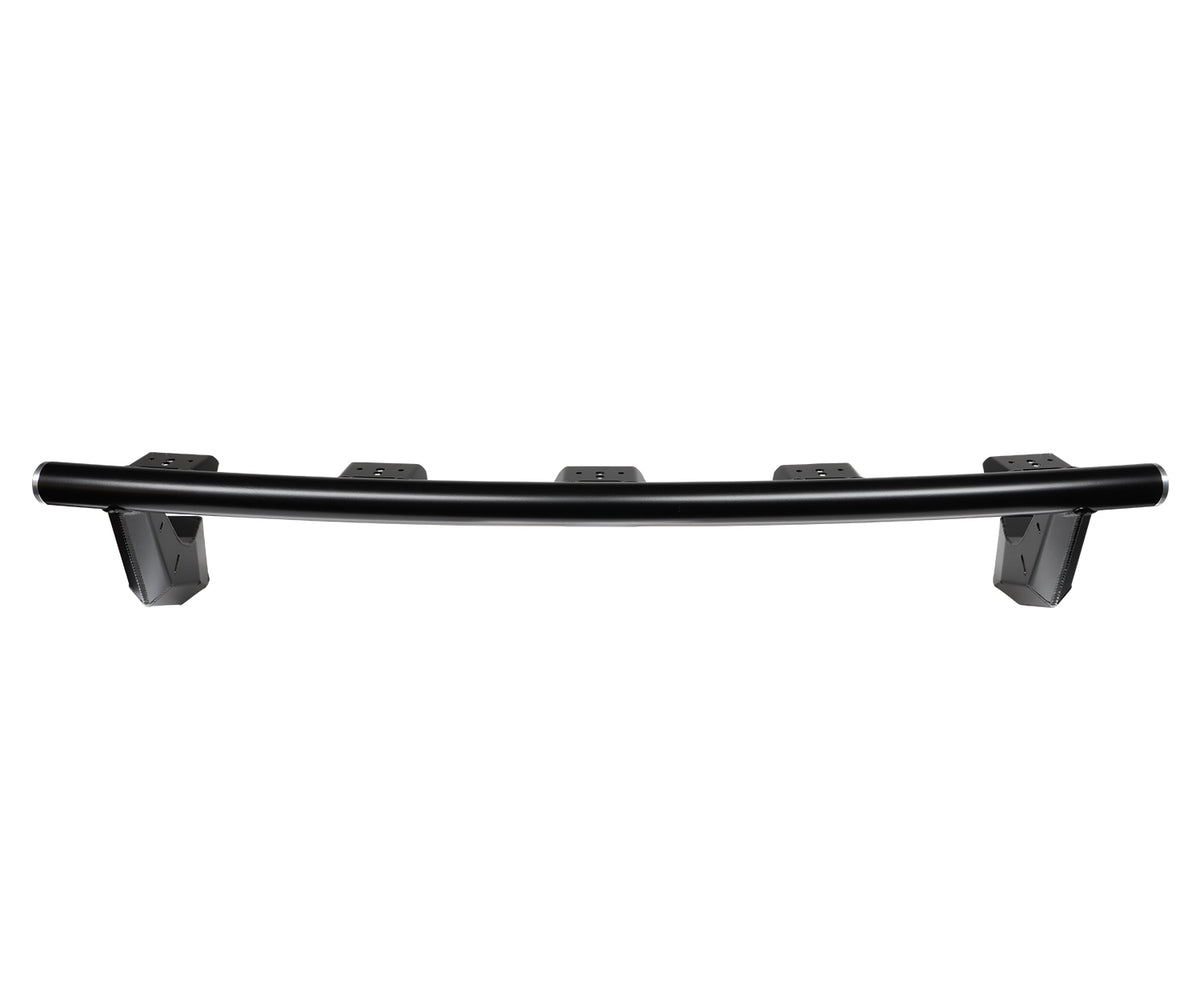

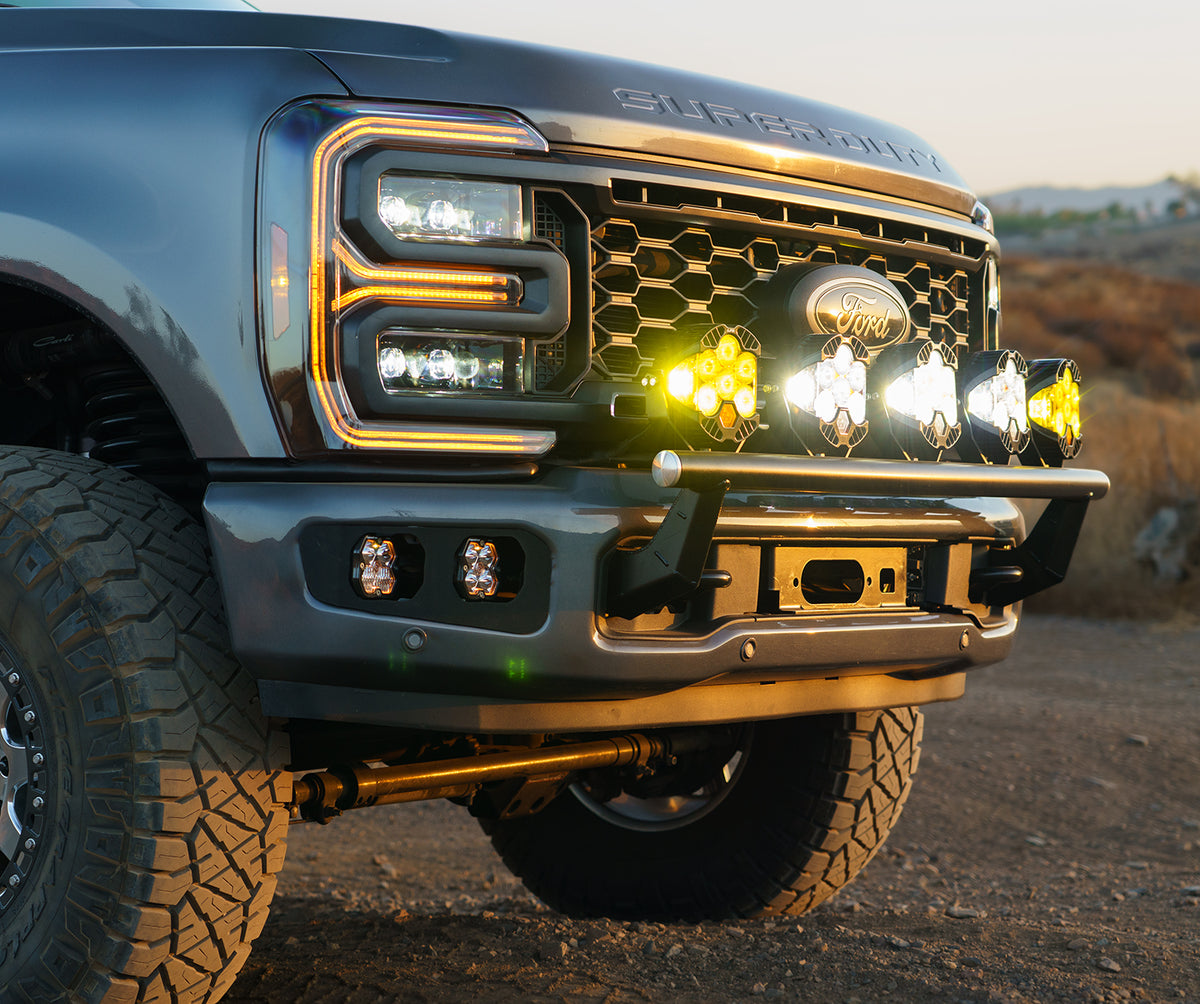

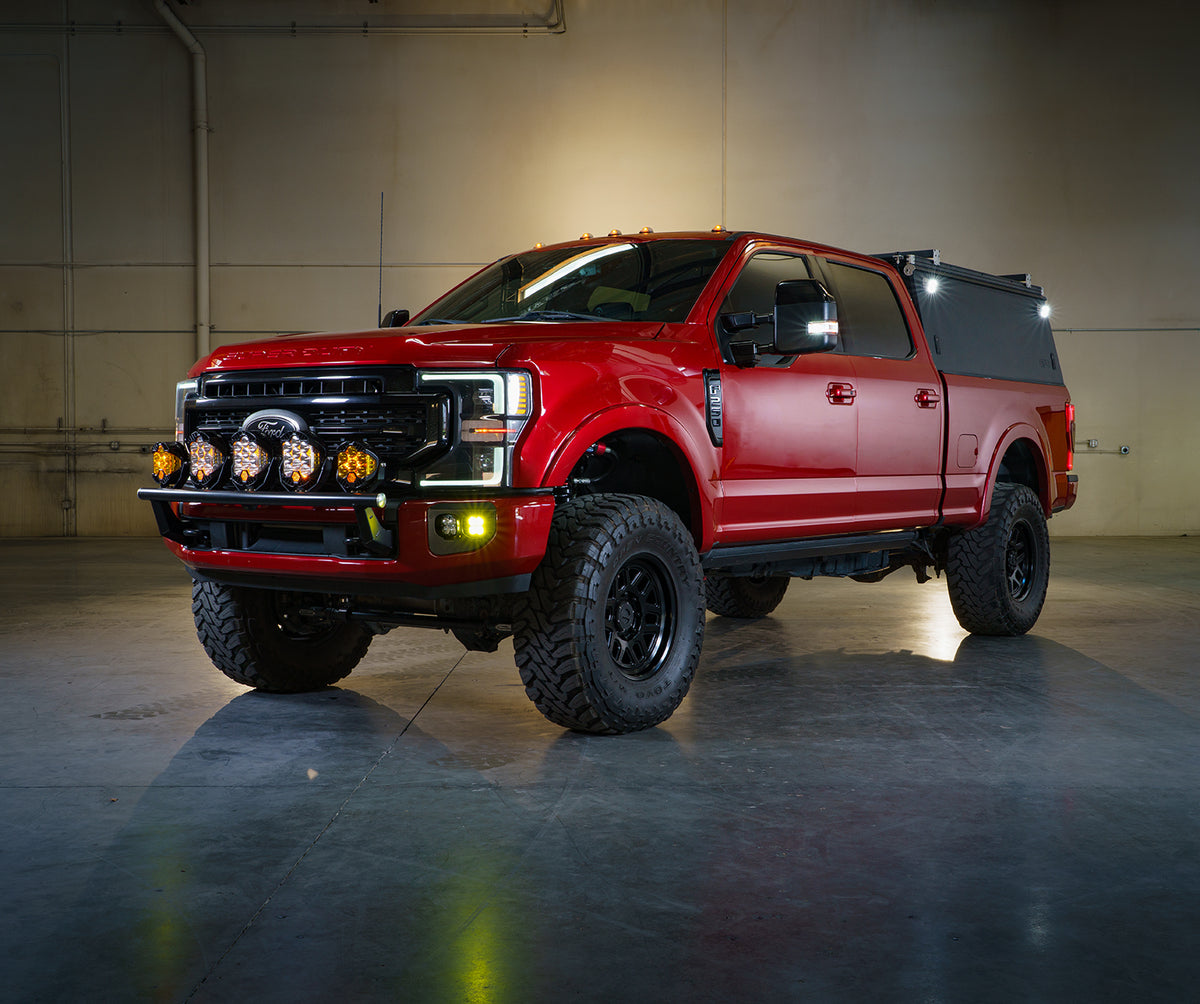

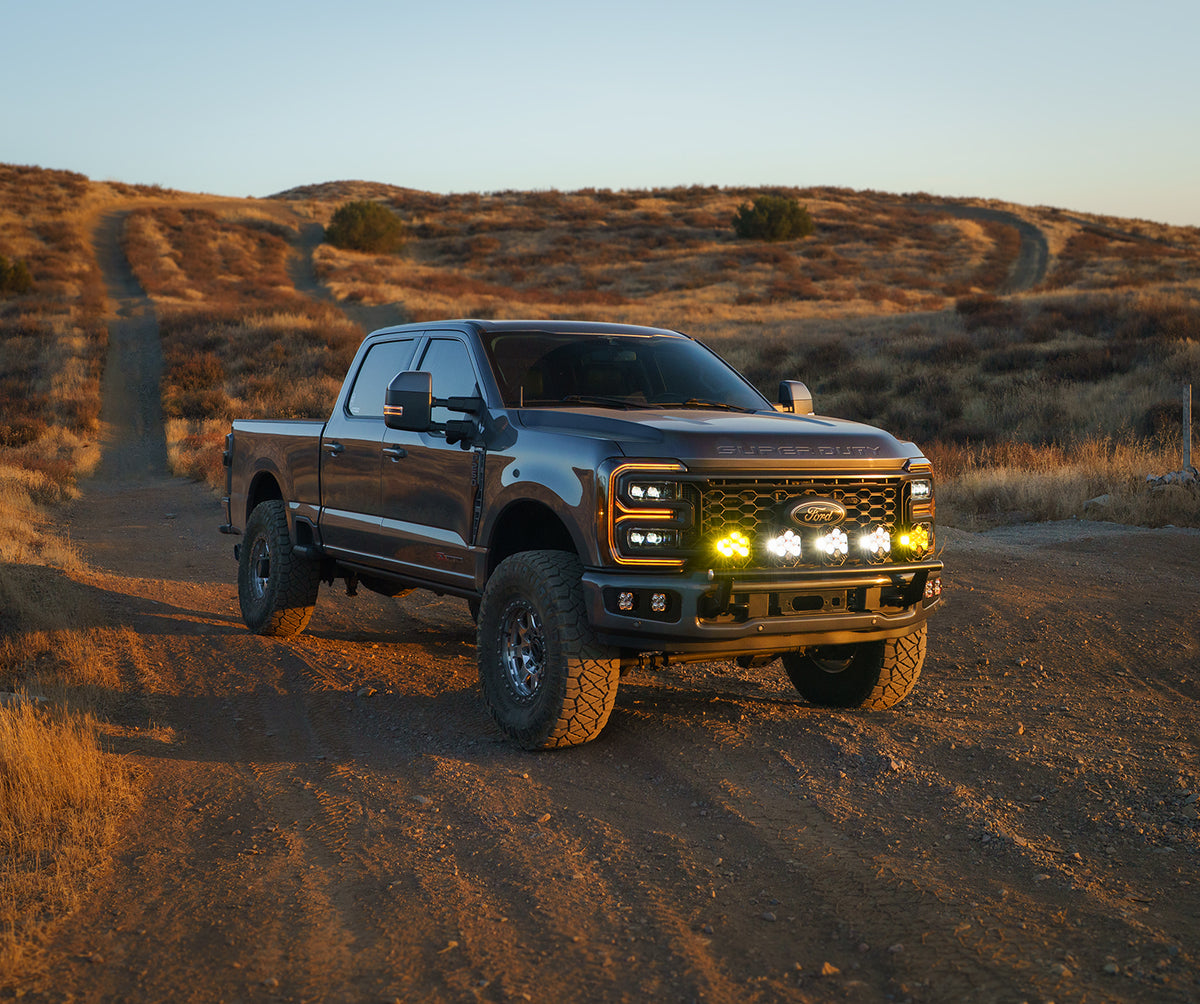

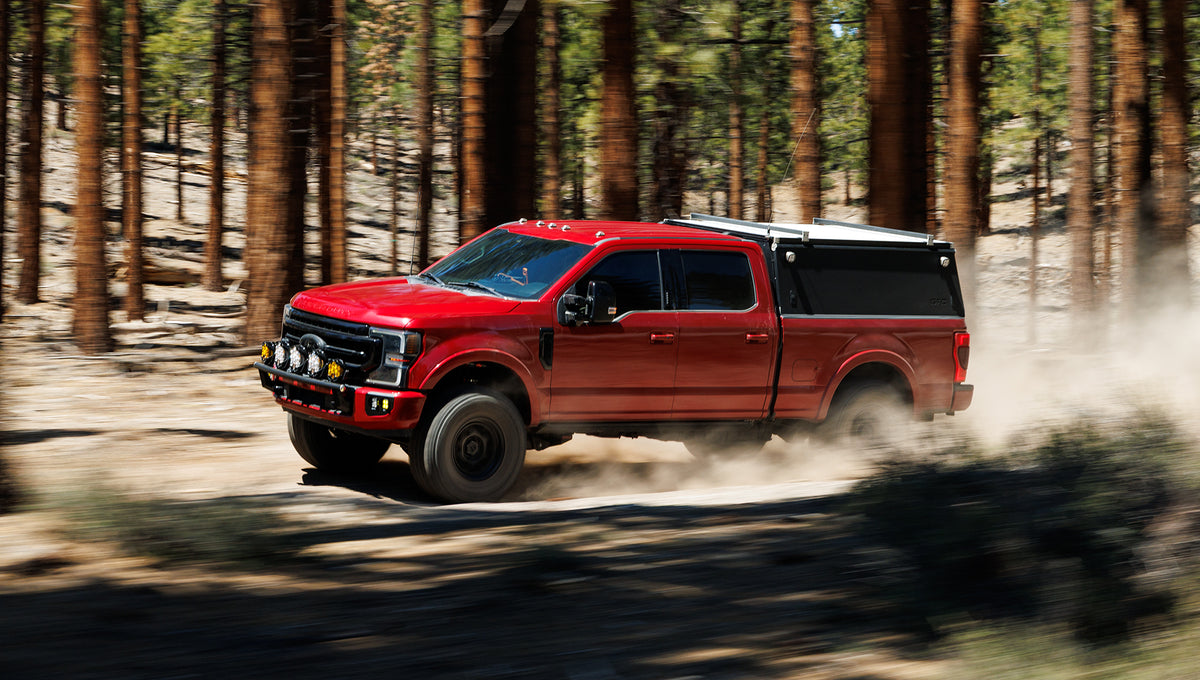

Built to the same exacting standards as the suspension components underneath your truck, the Carli Front Light Bar is a no-compromise platform that integrates serious off-road lighting with your Carli-equipped rig. The main striker tube is an uninterrupted radius rolled from 0.120" wall DOM, shaped to complement the curvature of the factory bumper and to match the Baja Designs 40" ONX6 Arc.
Features and Benefits:

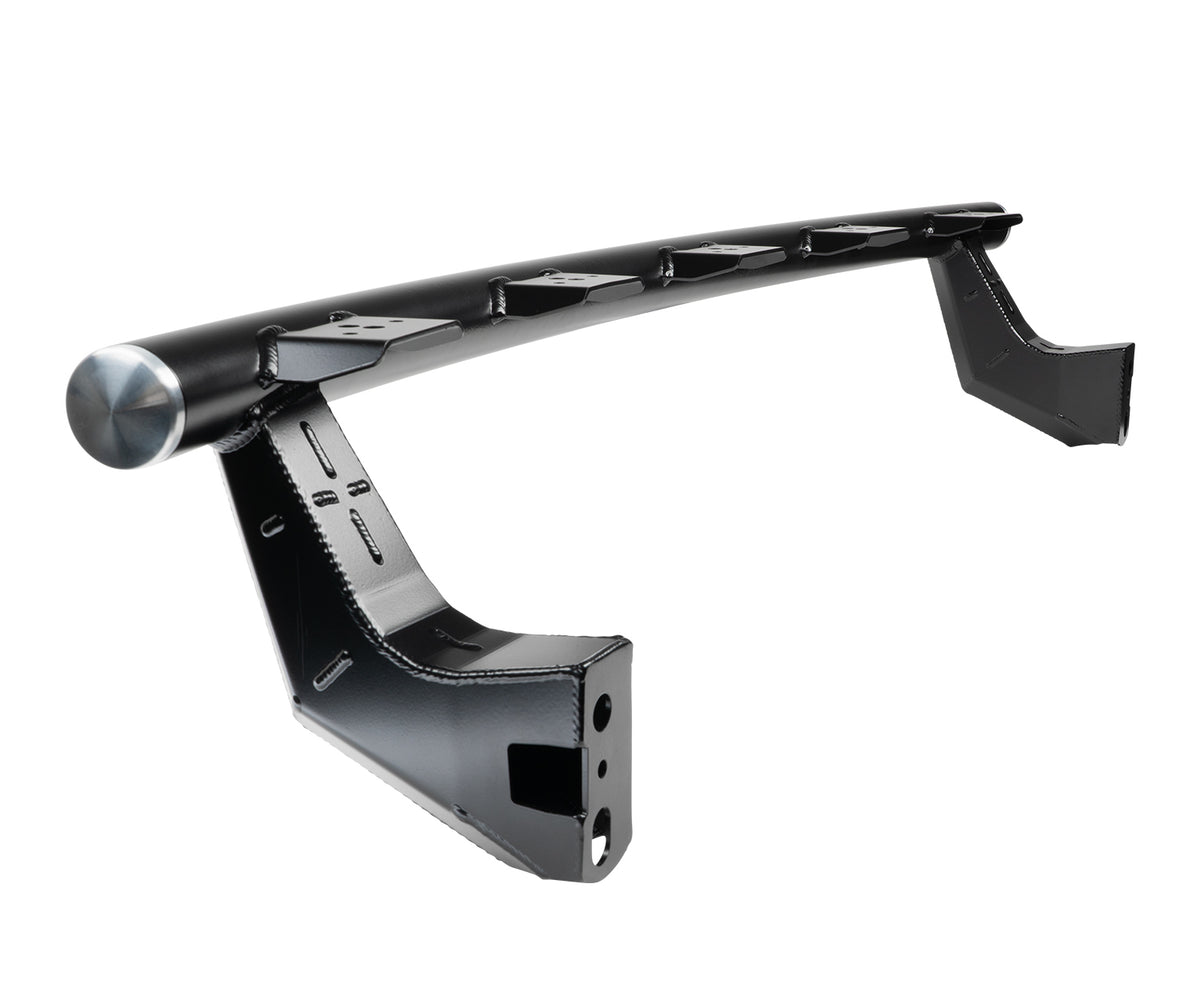

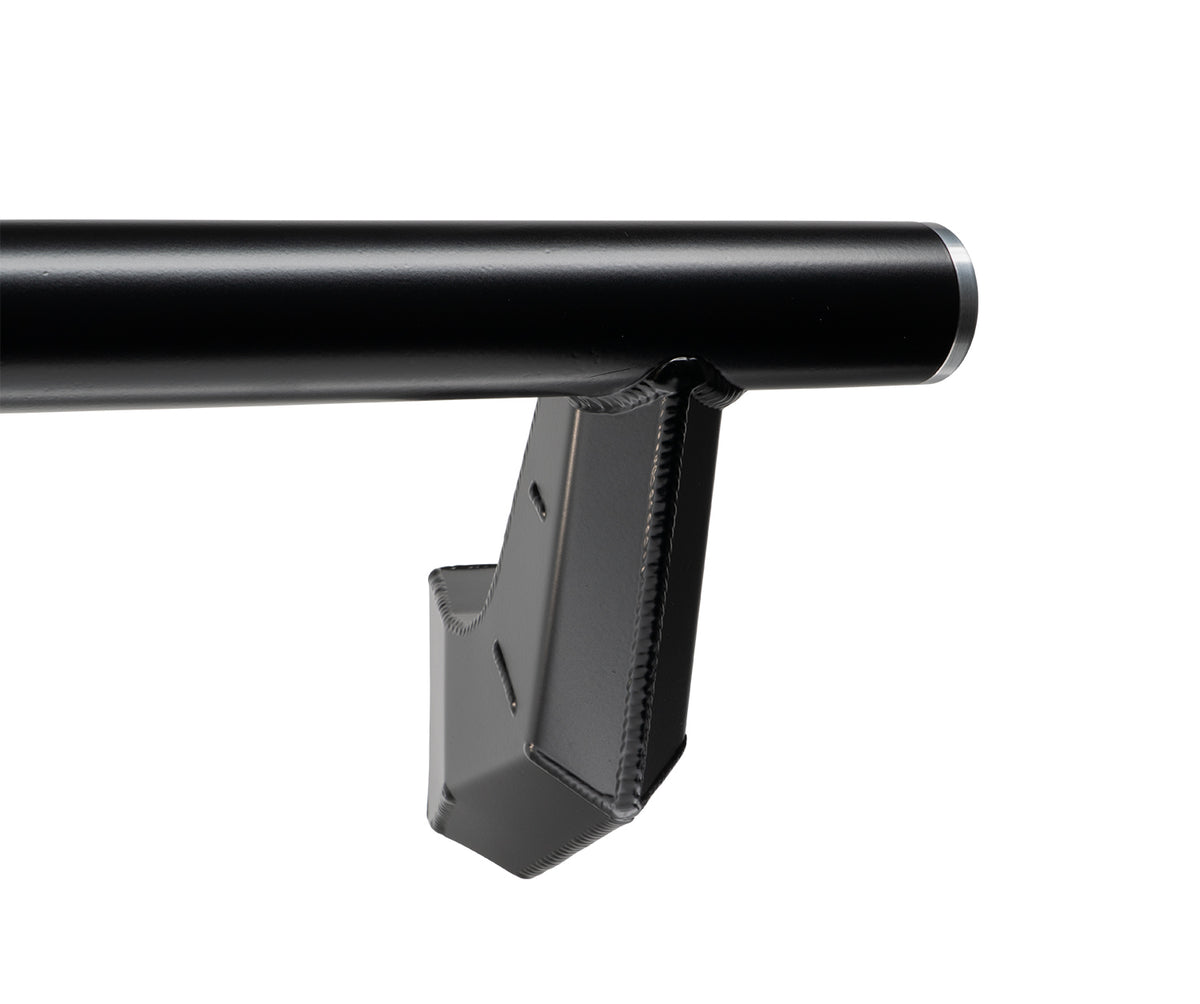

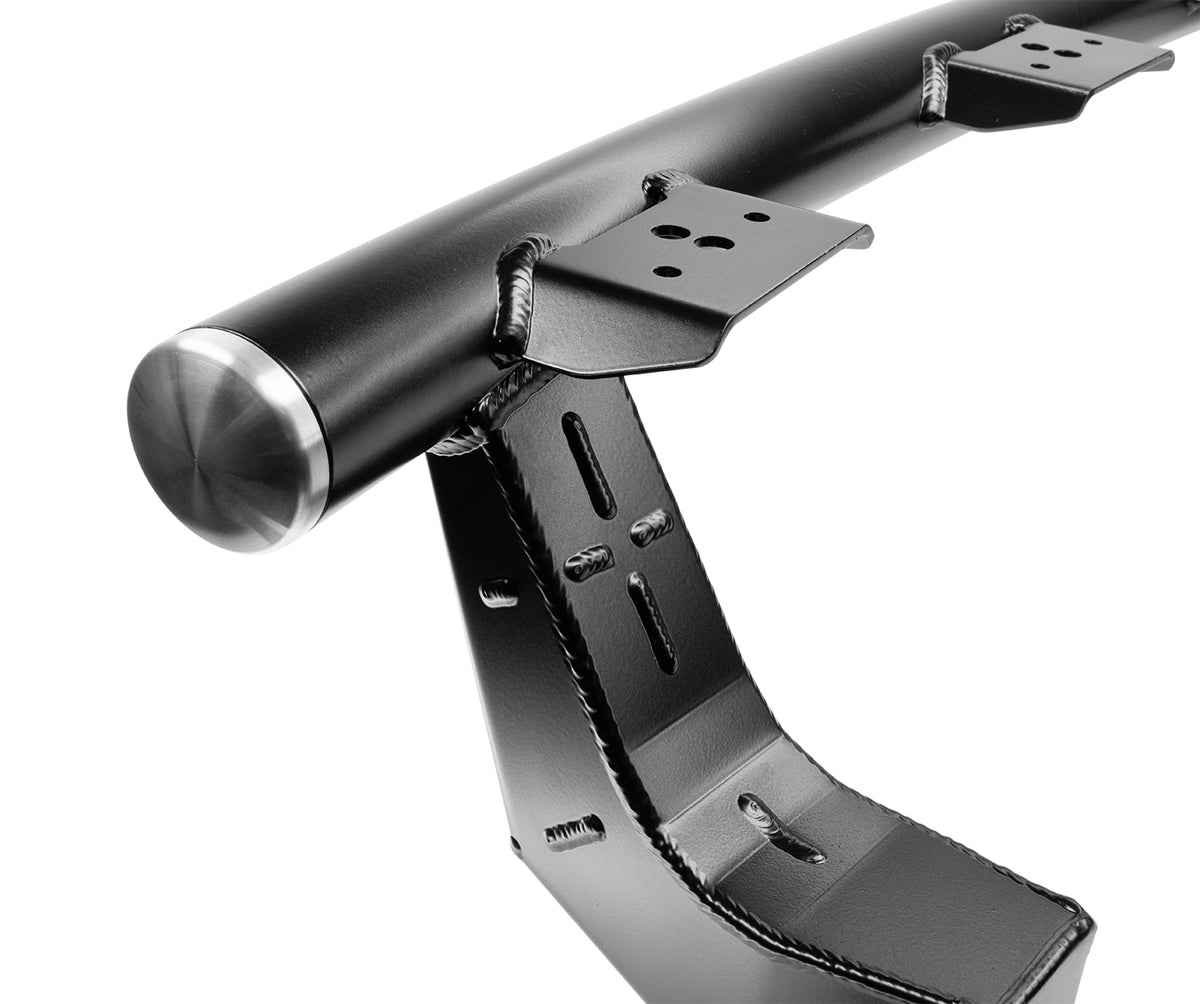

- Frame horns fabricated from 1/8" cold-rolled American steel, fully boxed and internally gusseted to eliminate flex where the bar meets the truck

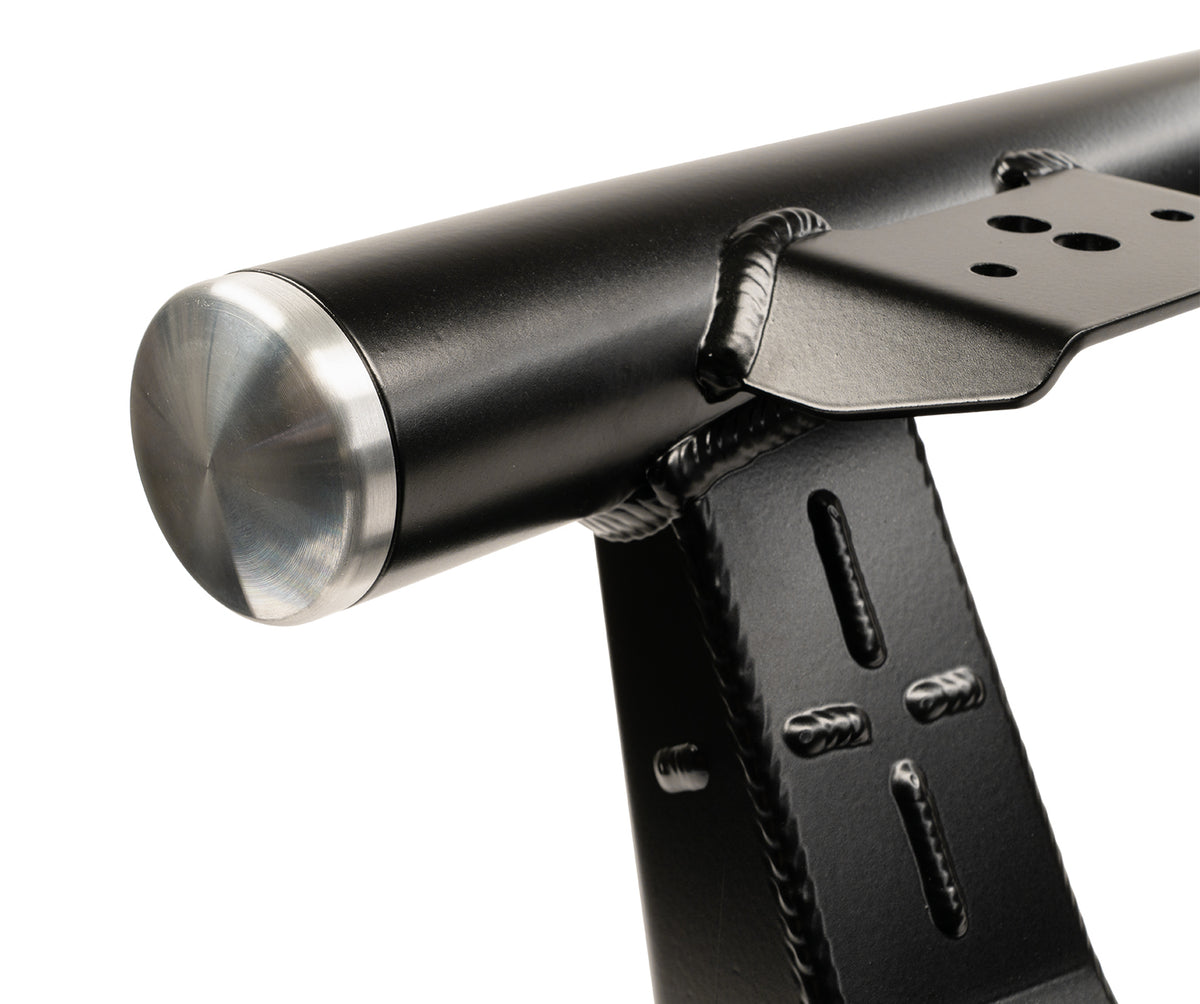

- Machined 6061 billet aluminum end caps in a bright finish contrast the satin-black powder-coated bar

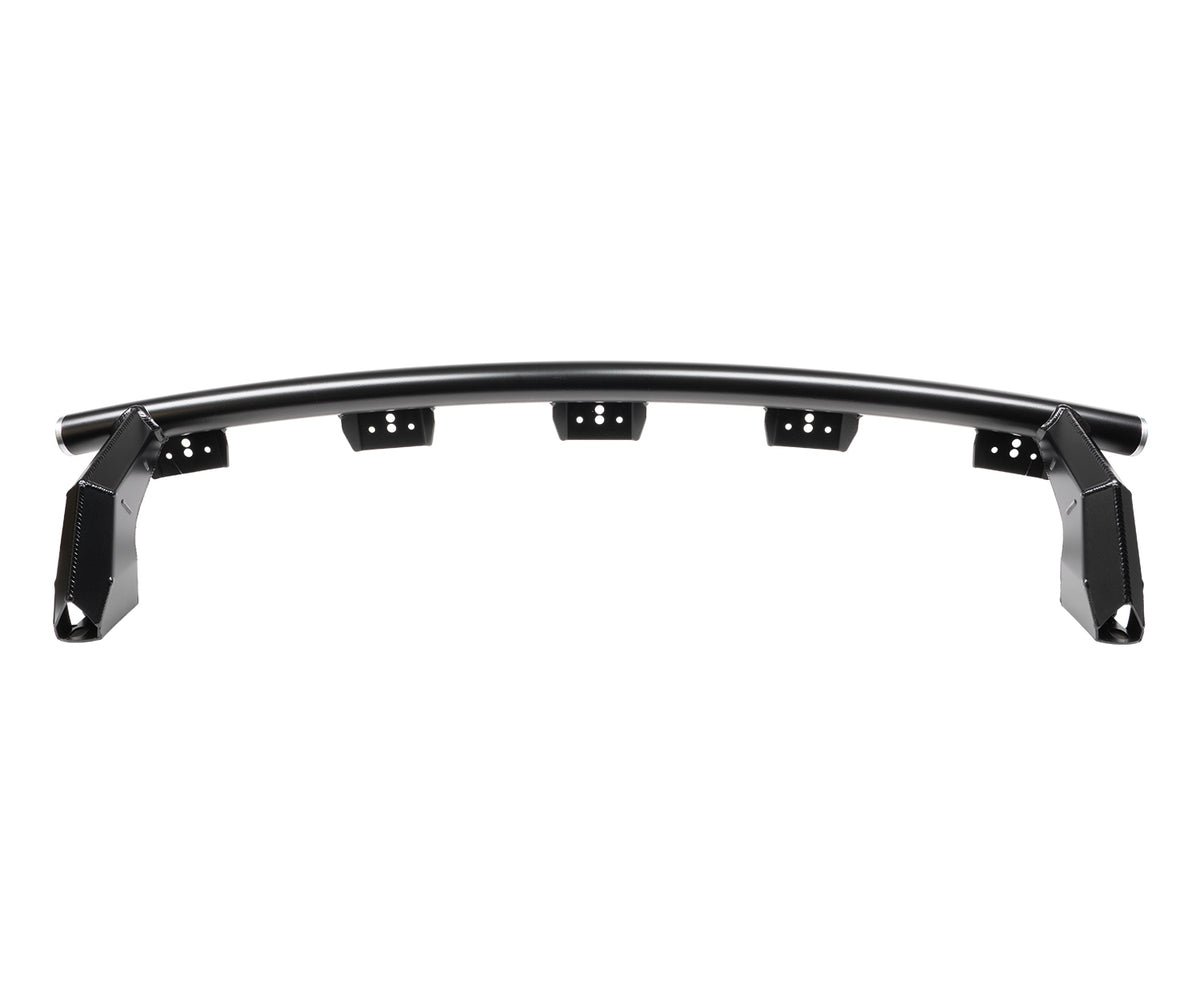

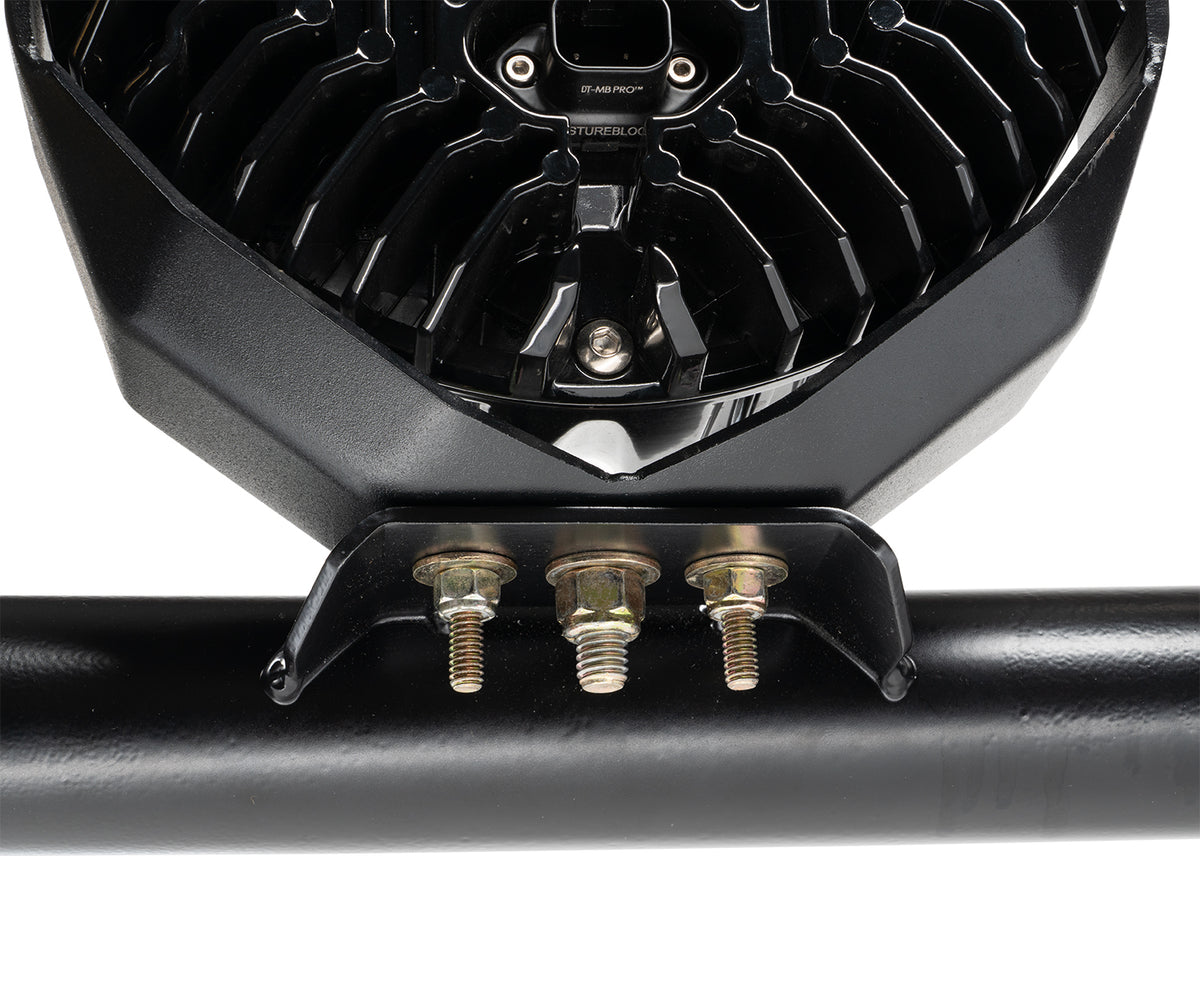

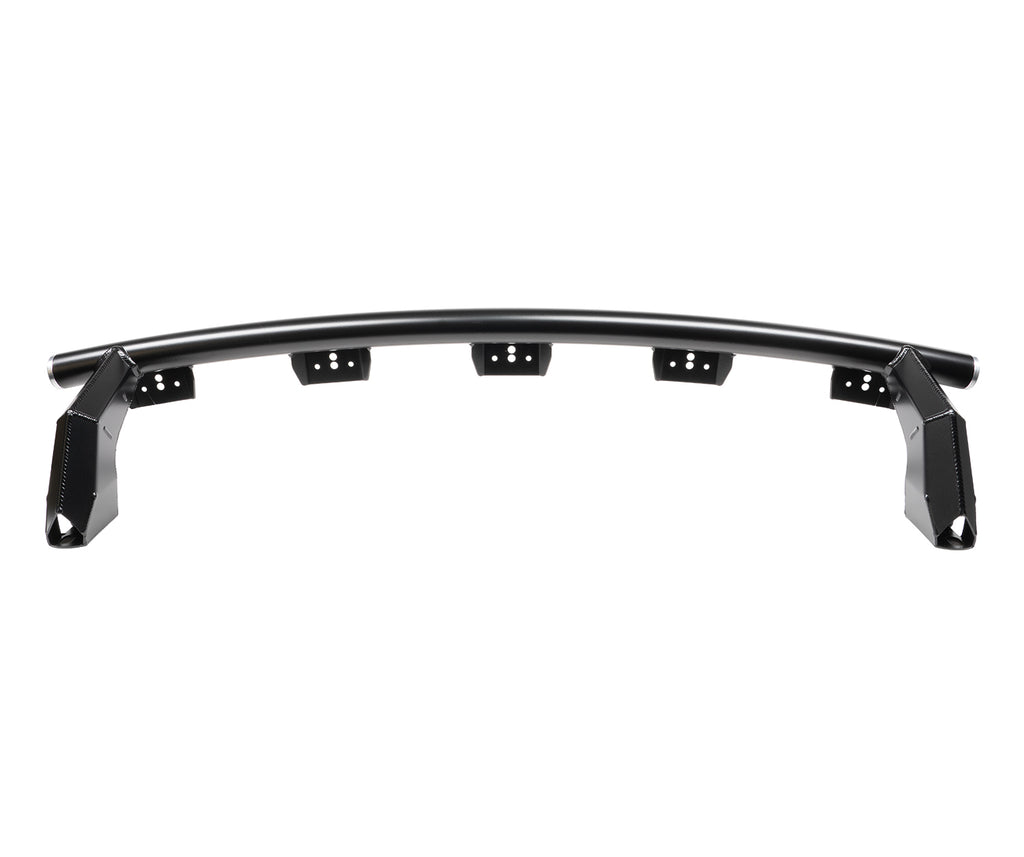

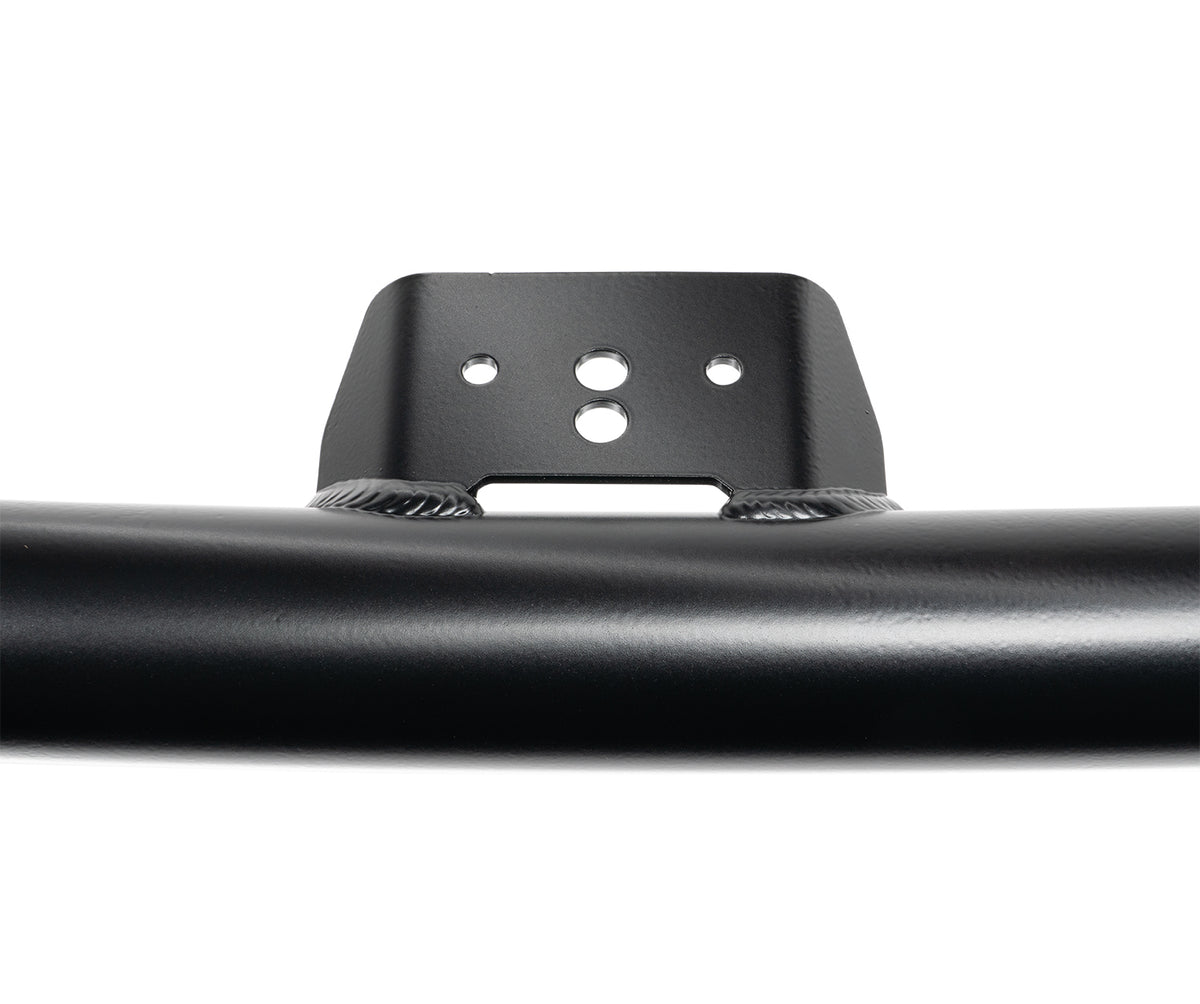

- Designed around the Baja Designs catalog: five welded light-mounting tabs accept standard LP Series and ONX6 hardware with a three-bolt clamp

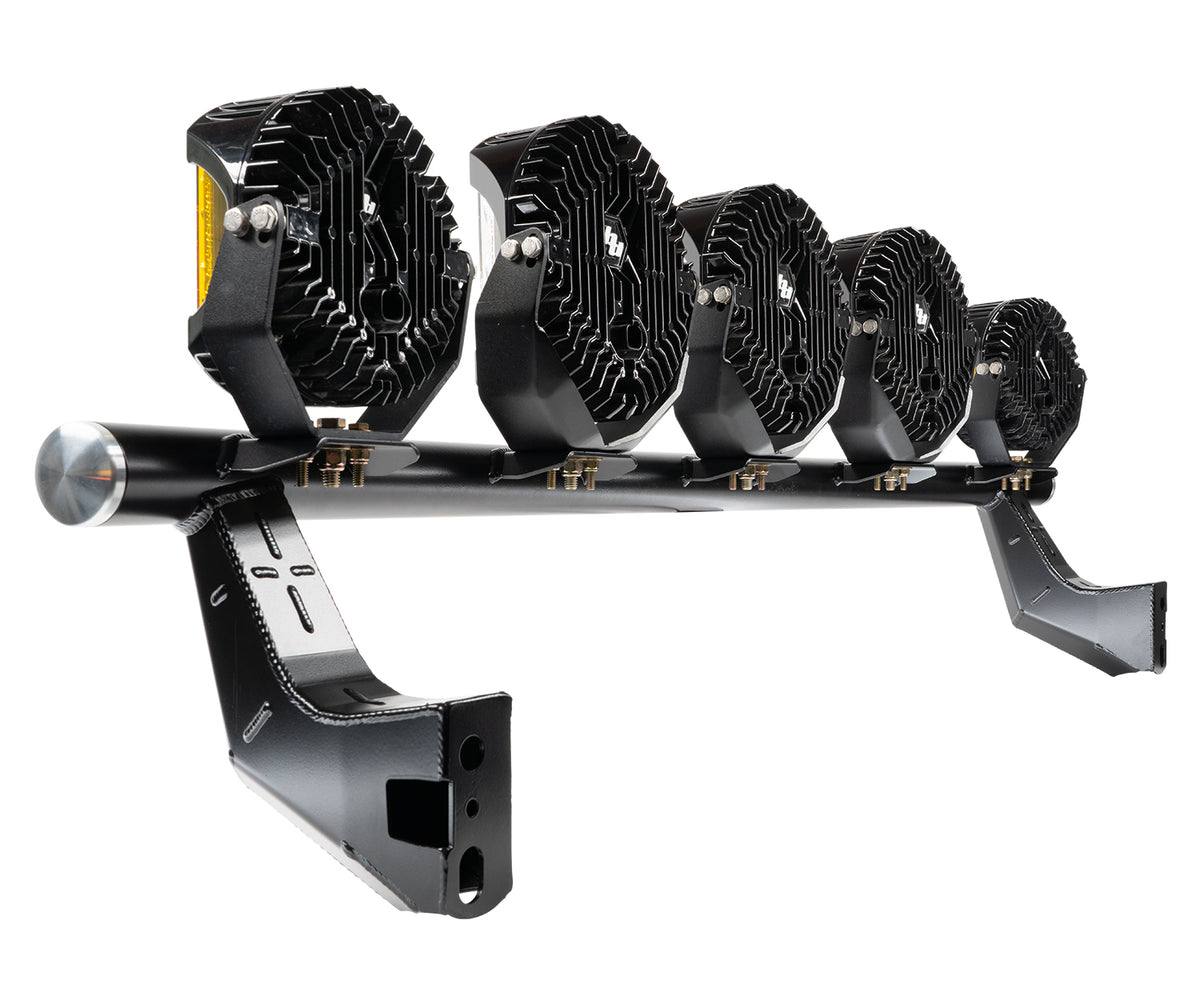

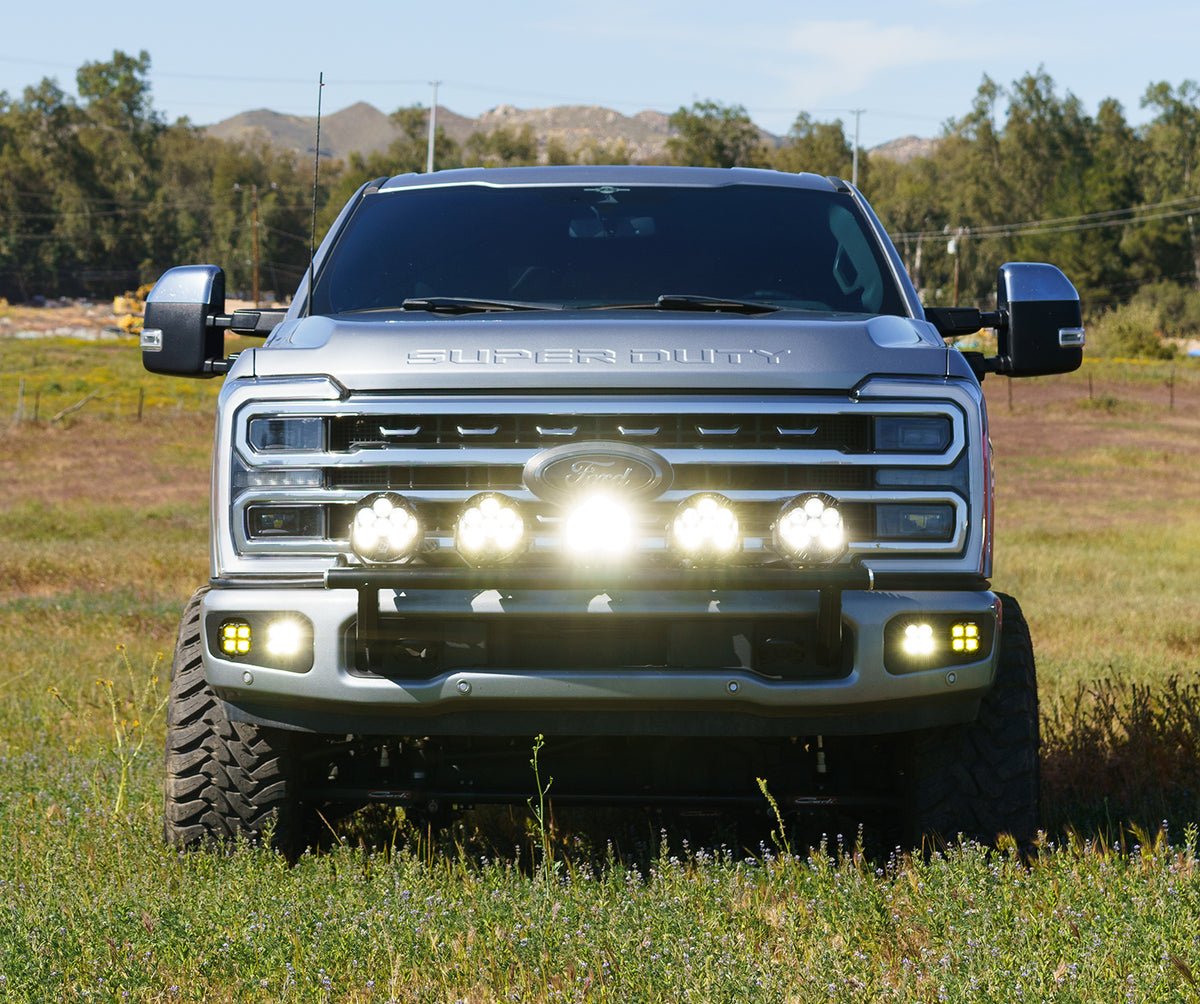

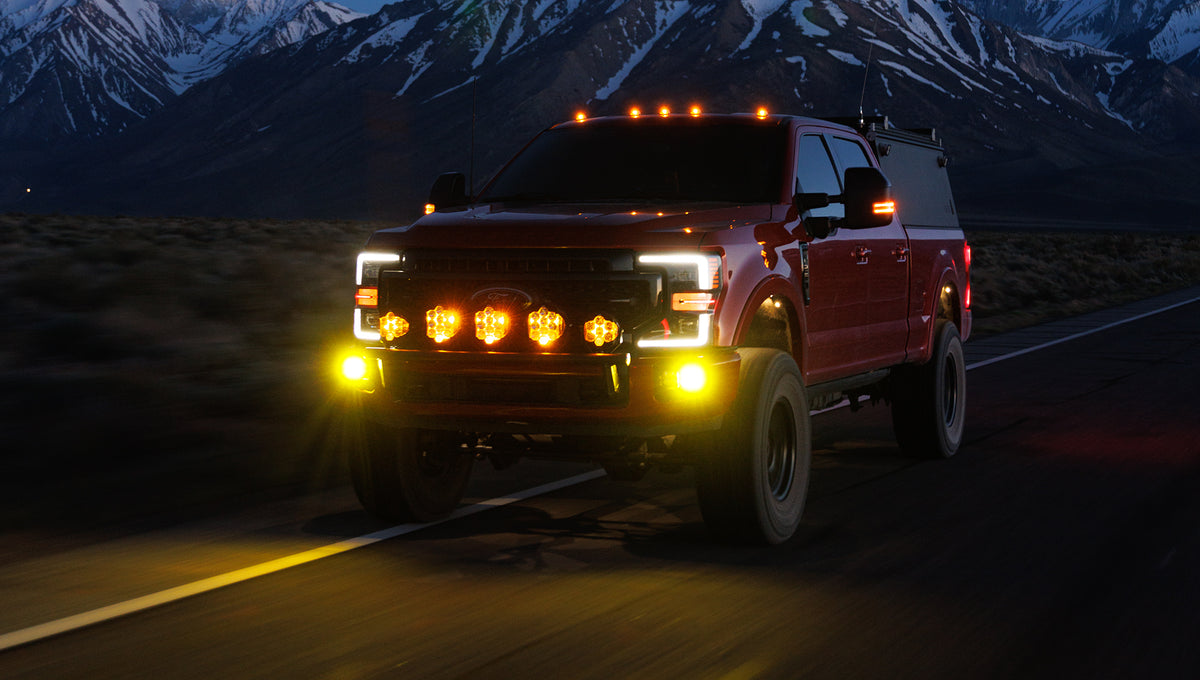

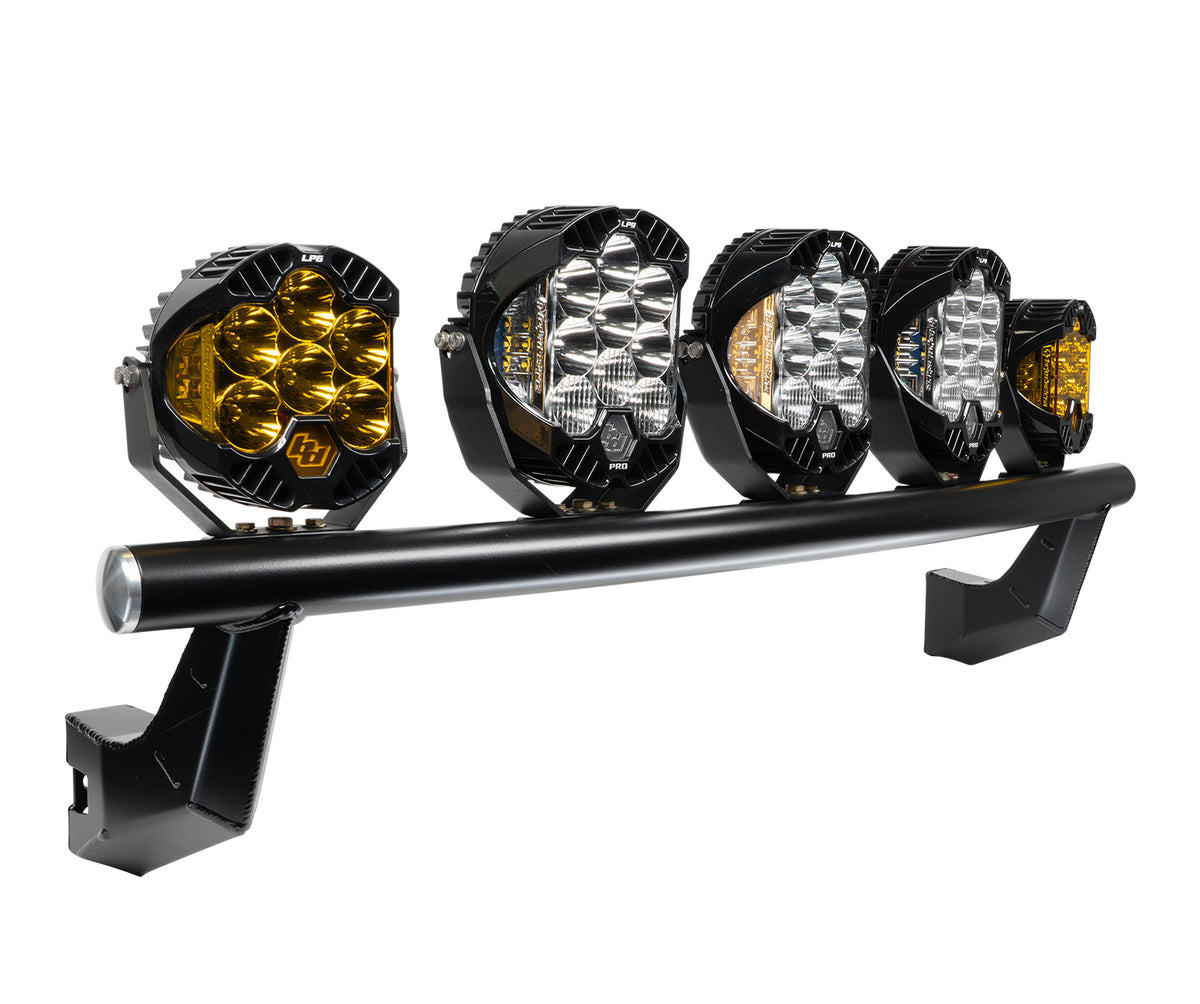

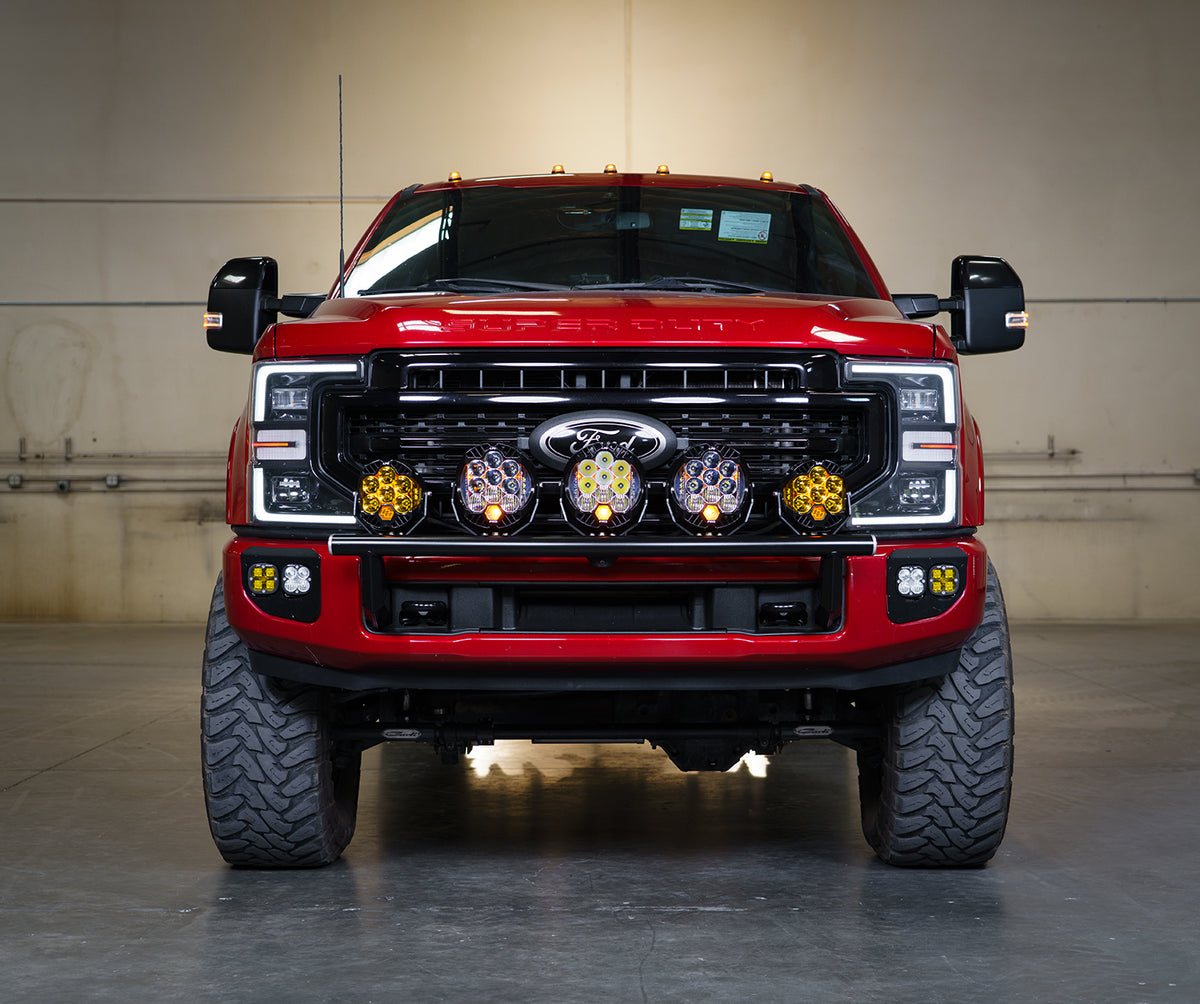

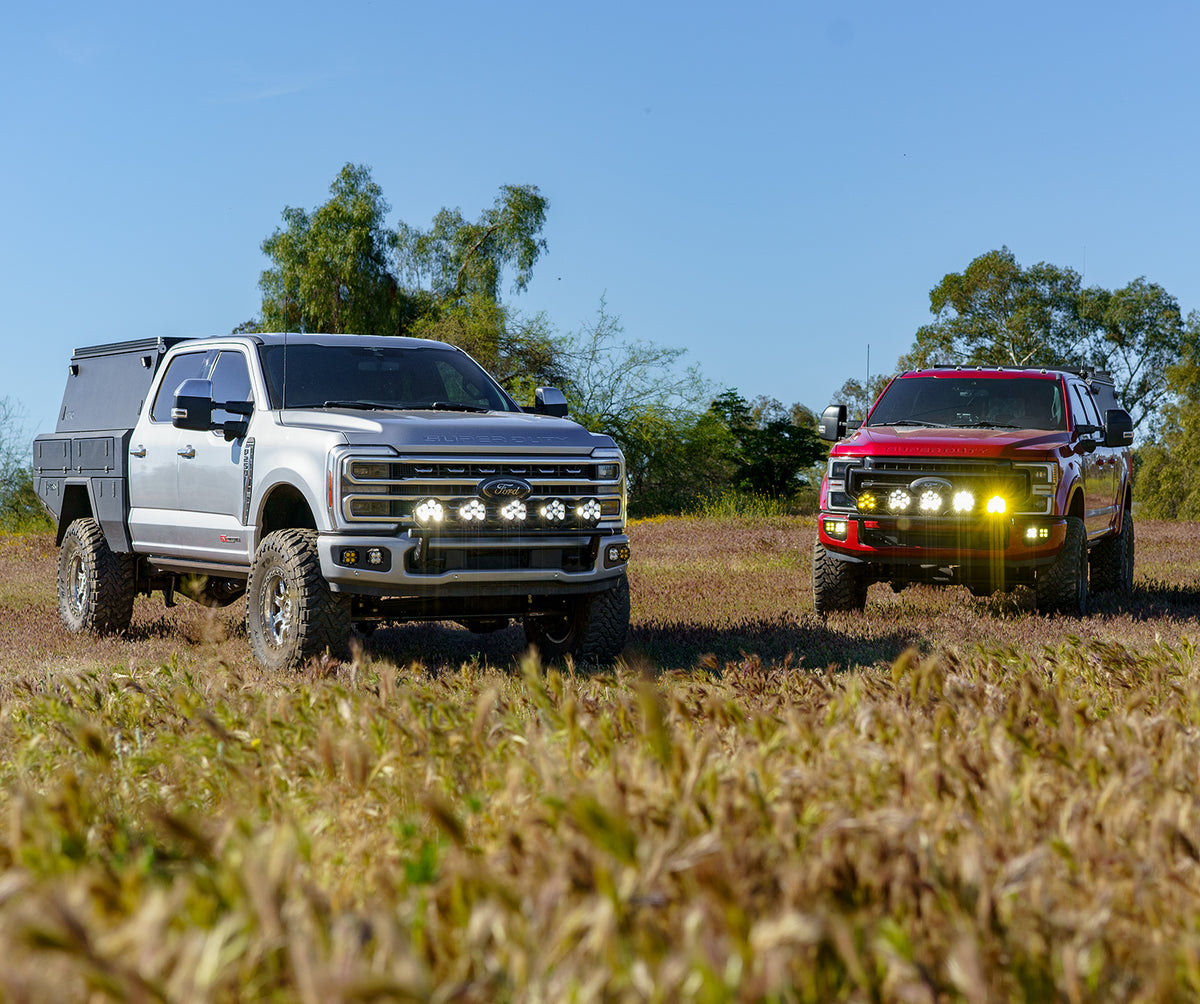

- Run five LP6 Pros, two Amber LP6s with three LP9 Racers, or a single 40" ONX6 Arc
- Bolts to four existing factory bumper locations - no drilling, and the bumper never leaves the truck
- Stud-and-nut-plate assembly pre-attaches to the bar for a one-person install
- All mounting hardware sits behind the bumper face - zero visible fasteners from the front

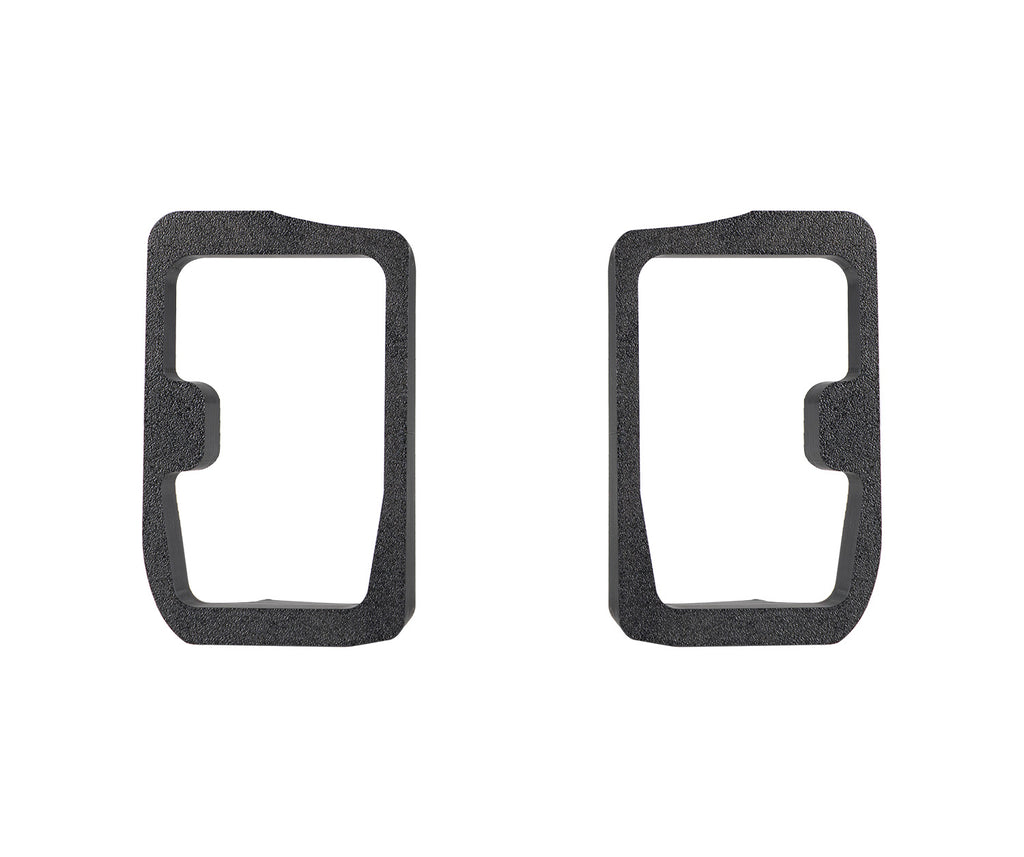

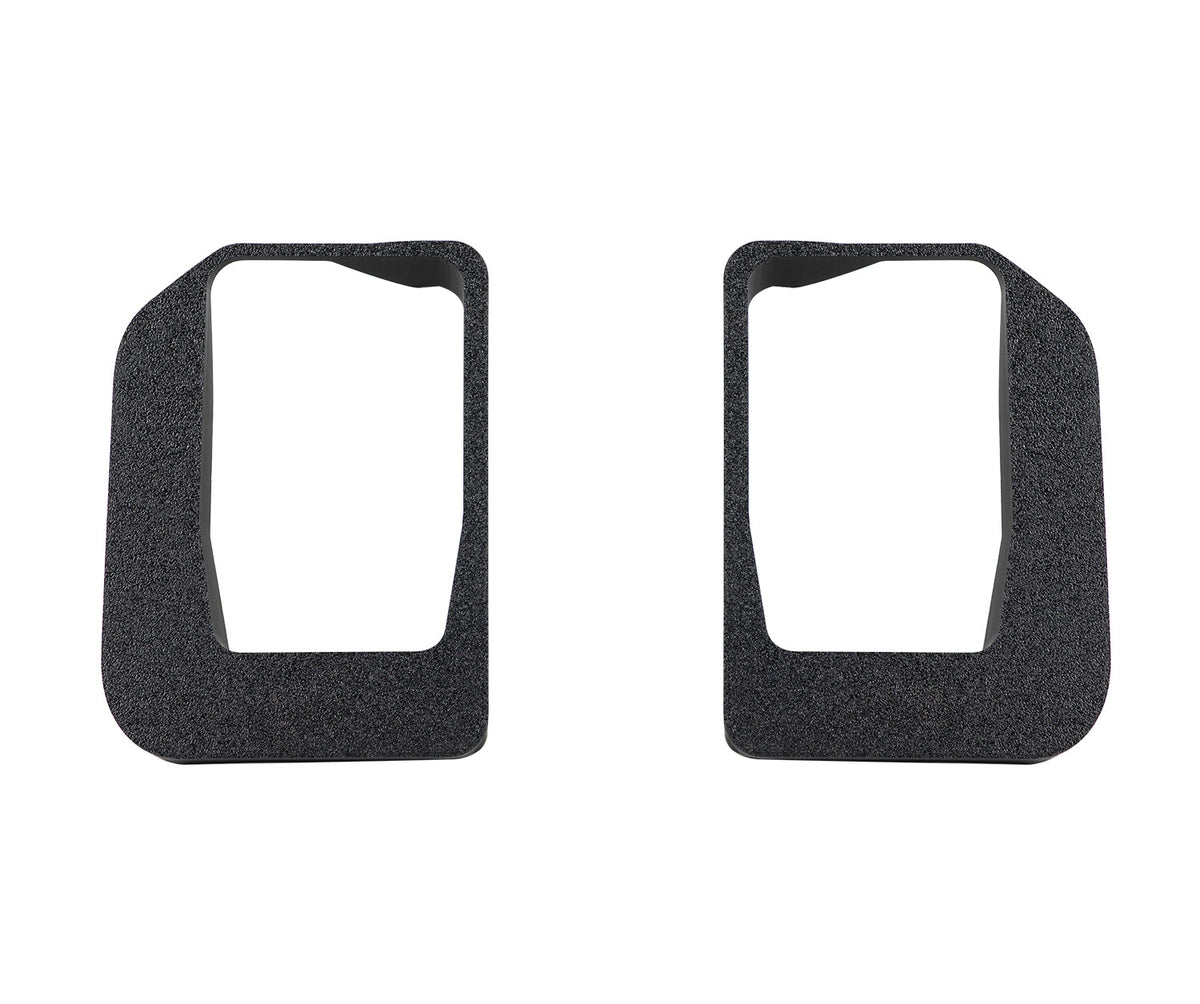

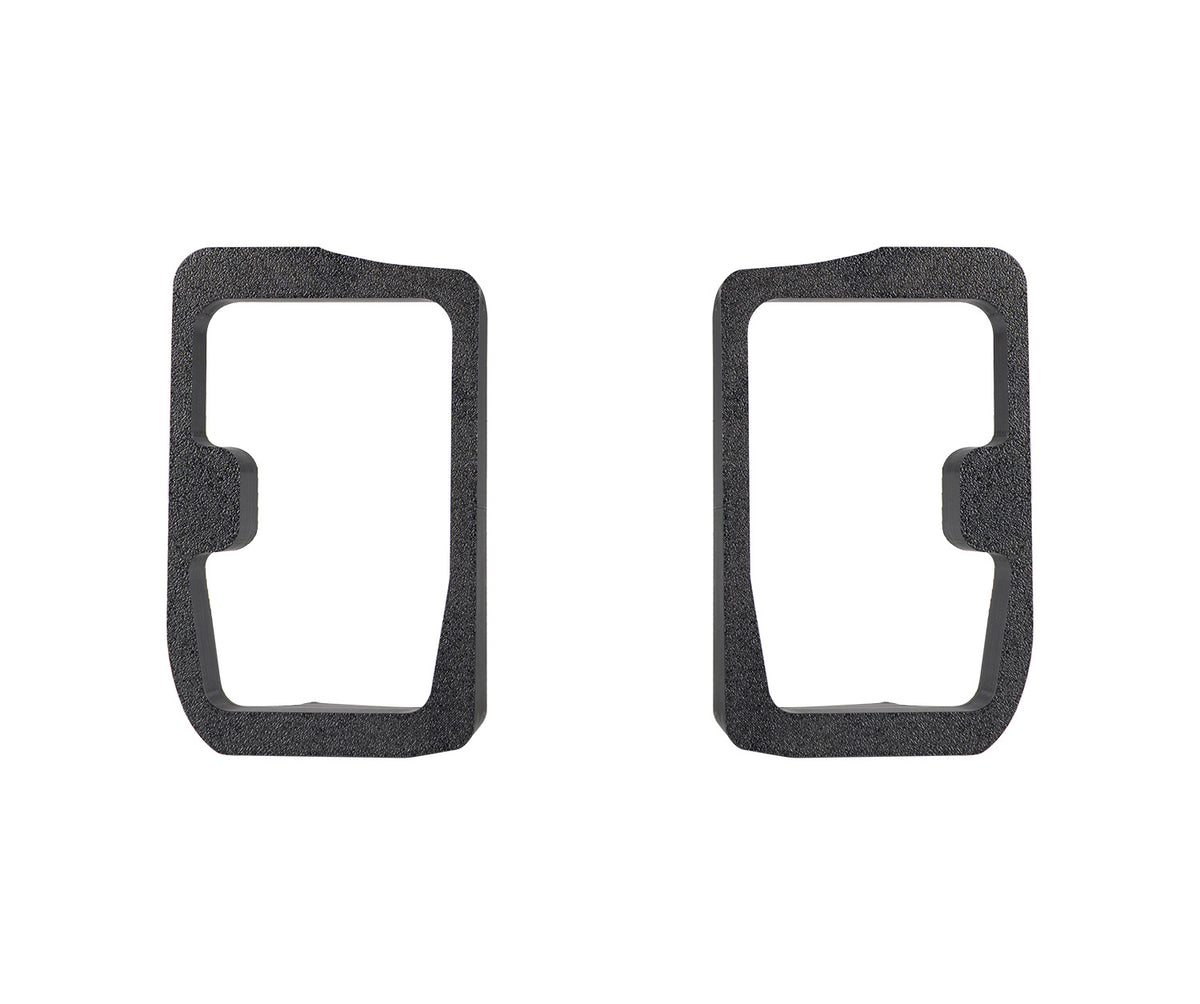

Cutout Template:On 2020 and newer trucks the bar passes through the factory lower bumper bezel, the textured plastic panel around the tow hooks. That inexpensive, replaceable Ford panel is the only part that gets modified. Carli 3D-modeled both the 2020-22 and 2023+ inserts to produce a matching trim template that snaps onto the insert and gives a precise outline to cut. Each template fits both the standard and adaptive cruise control versions of the panel. Select the template for your truck above, or choose No Template if you do not need one.
Details:
- Material: 0.120" wall DOM tube, 1/8" steel horns, 6061 billet aluminum end caps
- Finish: Satin black powder coat
- Drive: 4WD
- Location: Front
- Warranty: Limited Lifetime Warranty
Fitment notes
- Lights are not included.
- 2020 and newer trucks require trimming the factory lower bumper bezel; earlier trucks do not.
- Choose the template that matches your model year: 2020-2022 or 2023-2026.
