The ICON 2.5 Inch suspension system is a great way to lift your 4WD 2017-2019 Ford F-250/F-350 Super Duty while improving ride quality and performance. This upgraded Stage 6 system is great for towing, rough construction site terrains, and country dirt roads all while keeping a smooth highway feel.

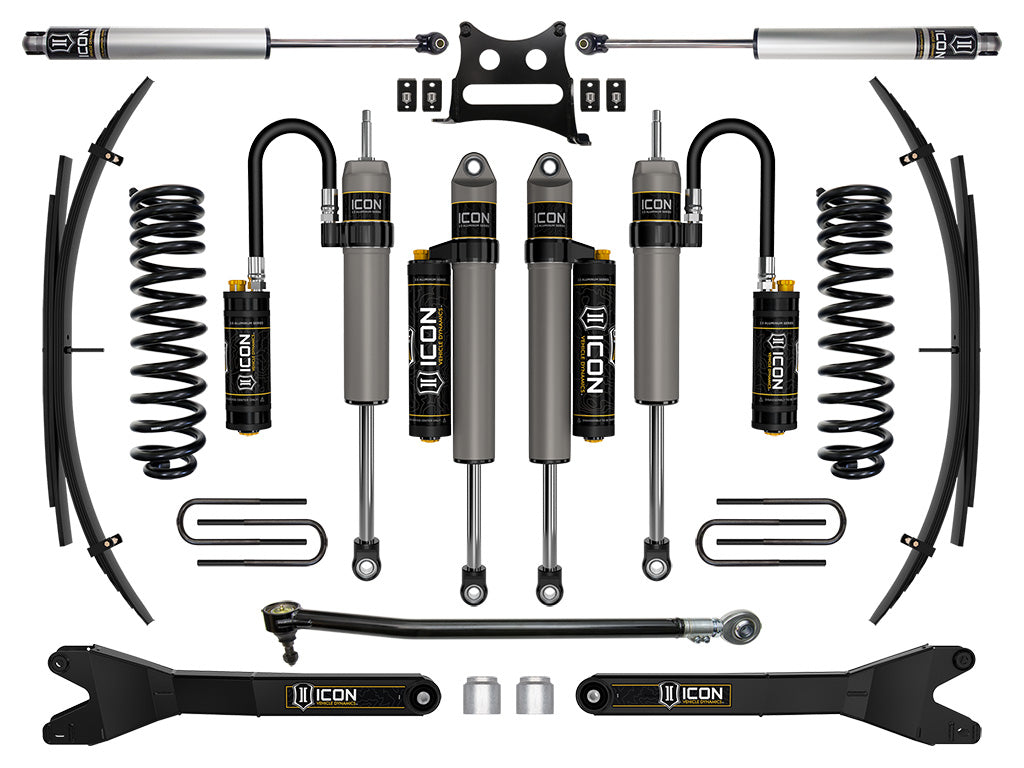

Also included in this stage is ICON's CDC Valve front and rear shocks, for those desiring an easy way to tune the ride externally with 10 settings, from soft to hard. ICON's Stage 6 System is comprised of dual rate coil springs, 2.5 Aluminum Series CDCV remote reservoir front and CDCV piggyback reservoir rear shocks, adjustable front track bar with massive FK rod end, fabricated ICON radius arms, dual steering stabilizer kit with ICON 2.0 Aluminum Series stabilizers, and rear leaf spring expansion packs with blocks and U-bolts for a more compliant ride and reduced axle wrap.
ICON 2.5 Inch remote reservoir and piggyback reservoir shocks ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.
Features and Benefits:
- This Stage 6 system sees the inclusion of the ICON Vehicle Dynamics Ford Super Duty Radius Arm System that feature a sealed pivot bushing that minimizes road feedback and ensures a long life and quiet operation. Their on vehicle caster adjustment allows for proper caster while eliminating the need for caster bushings or drop brackets. Additionally, their fabricated, fully boxed design ensures strength and utilizes a profile optimized for tire clearance at full steering lock, making a 37 Inch tall tire clear without coming in contact with the radius arm.
- ICON engineered dual rate coil springs provide 2.5 Inch of front lift over stock
- Vehicle specific tuned remote reservoir front and piggyback reservoir rear 2.5 Aluminum Series shocks
- Front and rear shocks equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
- On-vehicle adjustable track bar for optimum front axle centering and minimal deflection
- Dual steering stabilizer kit for smooth wheel control while driving
- Fabricated radius arms offer on vehicle caster adjustment, increased strength, and improved tire clearance at steering lock
- Leaf spring expansion packs and blocks for more compliant ride quality and reduced axle wrap
- Increased wheel travel and improved ride quality over stock with no change in towing capacity
- Less body-roll than stock
- Lifetime guarantee that springs won't sag or break
- No drive shaft modifications required
- Shocks are fully rebuildable and re-tunable
- 100 Percent Bolt-on system - no drilling, cutting or welding necessary for install
Details
- Bushings Included: Yes
- Coils Quantity Front: 2.0
- Dual Rate Coil Springs: Yes
- Front Spring Rate Type: Progressive Dual Rate
- Grade Type: Performance
- Leaf Spring Leaf Quantity: 7.0
- Maximum Lift Front: 2.5 Inch
- Maximum Lift Rear: 2.0 Inch
- Mounting Hardware Included: Yes
- Oem Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: 35 Inch X 12.50 Inch (37 Inch X 12.50 Inch Tires May Fit But Fender Trimming And Modifications Will Be Required.)
- Recommended Aftermarket Wheels: Icon Alloys - 20x9 Inch W/ 5.25 Inch Backspace / 6mm Offset, Icon Alloys - 18x9 Inch W/ 5.25 Inch Backspace / 6mm Offset, Icon Alloys - 17x8.5 Inch W/ 5 Inch Backspace / 6mm Offset
- Shocks Included: Yes
- Spring Color: Black
- Spring Material: Steel
- Add On Part: 191014 - .25 Inch Collar Spanner Pin Wrench, 64039 - 08-25 FSD Track Bar Bump Steer Bracket Kit, 61111 - 17-25 FSD Front 2.5 Inch Extended Ss Brake Line Kit
