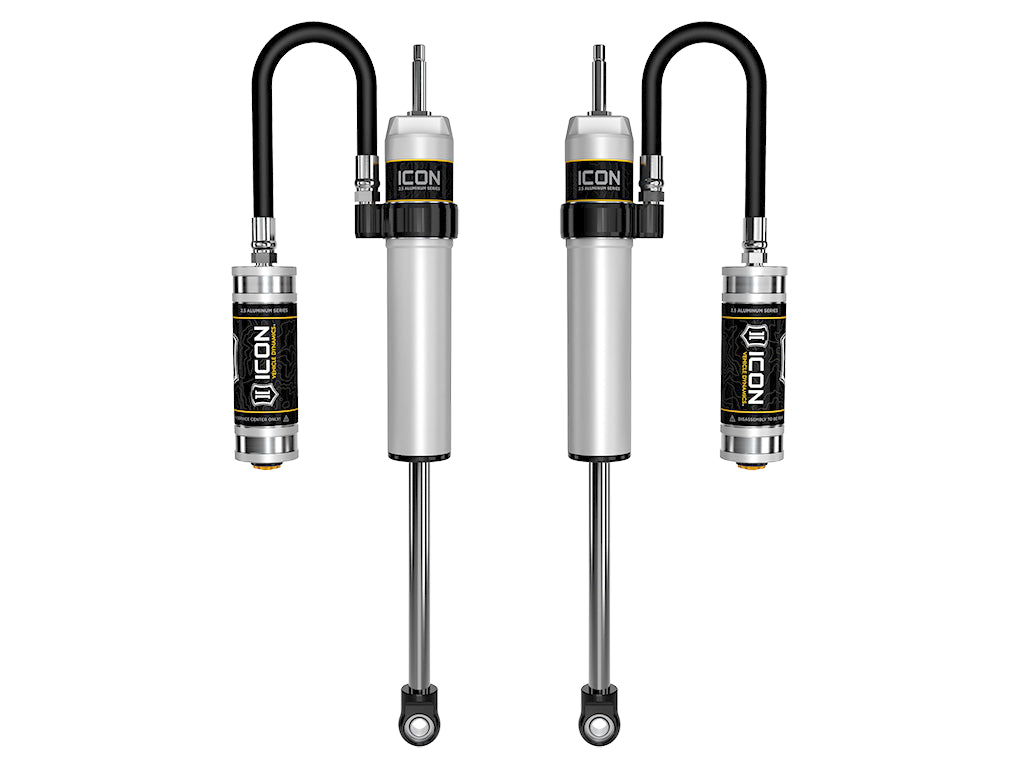

ICON's 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune.
Featuring one-piece impact extruded aluminum cylinders, these 2.5 Aluminum Series shocks offer lighter weight, improved corrosion resistance, and a more uniform finish than traditional plated steel cylinders. Like all ICON'S Shock Absorbers, 2.5 Aliminum Series shocks are 100 Percent rebuildable and 100 Percent revalveable.
For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20 Percent of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity.
If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDCV) shocks.
Features and Benefits:
- ICON's internal InchBump Zone Inch increases damping by 20 Percent to provide more control as the shock approaches full compression
- 100 Percent Rebuildable
- 100 Percent Revalveable
- Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- Nitrogen charged monotube design with remote reservoir
- Double-sealed Schrader caps reduce risk of damage
- One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- 7/8 Inch diameter induction hardened, chrome plated shock shaft
- PTFE lined spherical bearings and application specific mounting hardware
- 6061 aircraft grade aluminum CNC machined components
- One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
Details
- Adjustable: No
- Boot Included: No
- Bore Diameter: 2.25
- Cylinder Color: Silver
- Cylinder Material: Aluminum
- Damping Type: Oil
- External Reservoir: Yes
- Fully Open Length: 24.18
- Gas Charged: Yes
- Grade Type: Performance
- Lower Mount Type: Eyelet
- Mounting Hardware Included: Yes
- Service Parts: 252011 - 2.5 Piggyback/Remote Resi/Bypass Rebuild Kit, 252002 - Universal Spanner Wrench (2.0/2.5/3.0), 252003 - Seal Install Tool 2.5/3.0, 257339 - 7/8 Shaft 13.25 Oal, 9.00 Travel, 254100G - 1 Gallon Icon Performance Shock Oil, 611006 - 9/16 HD Stem Bushing Kit, 252001 - 2.5 Fixed Spanner Wrench, 191016 - 7.5 Inch Finned Resi Upgrade Kit
- Shaft Diameter: 0.875
- Shaft Material: Chrome
- Shock Absorber Body End Measuring Point: Shoulder Of Stem
- Shock Absorber Rod End Measuring Point: Center Of Eyelet
- Tube Outside Diameter: 2.5
- Upper Mount Type: Stem
- Add On Part: 252012 - -4 To -10 Hose Shield Kit, 252008 - 2.5 X 13 Shock Boot Black (Pair)
