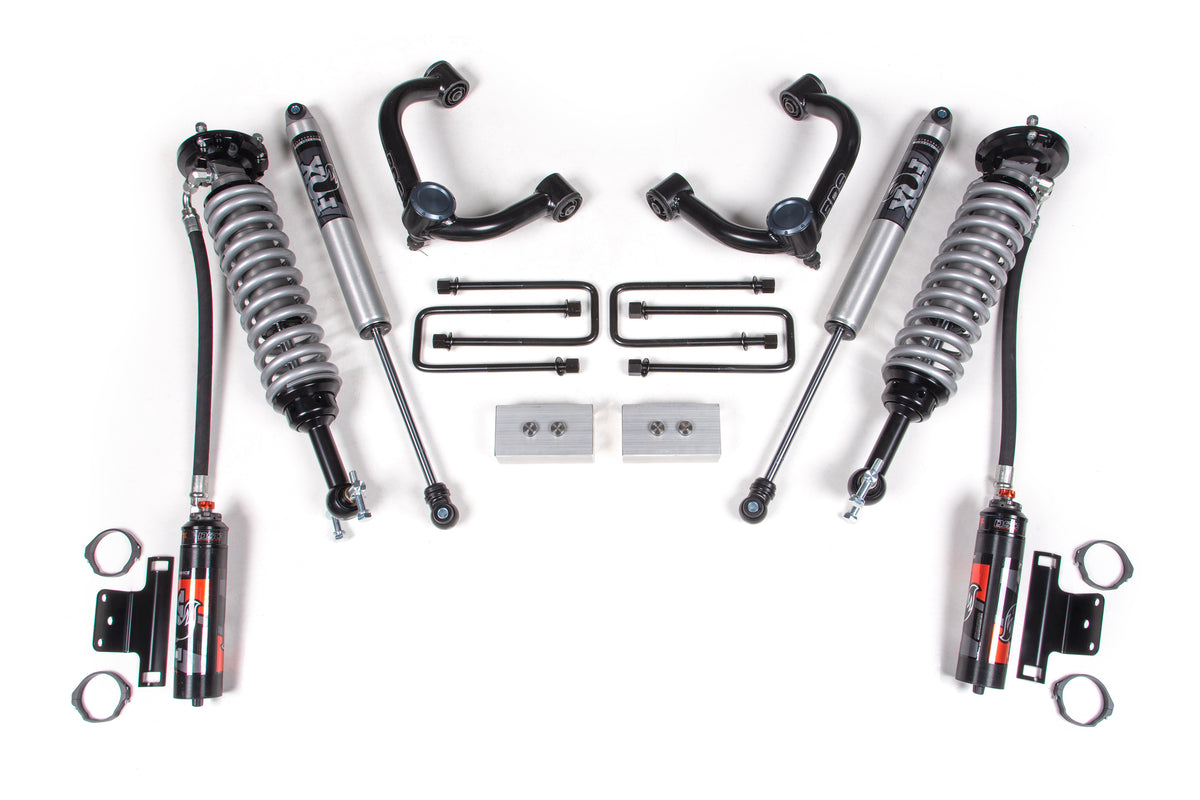

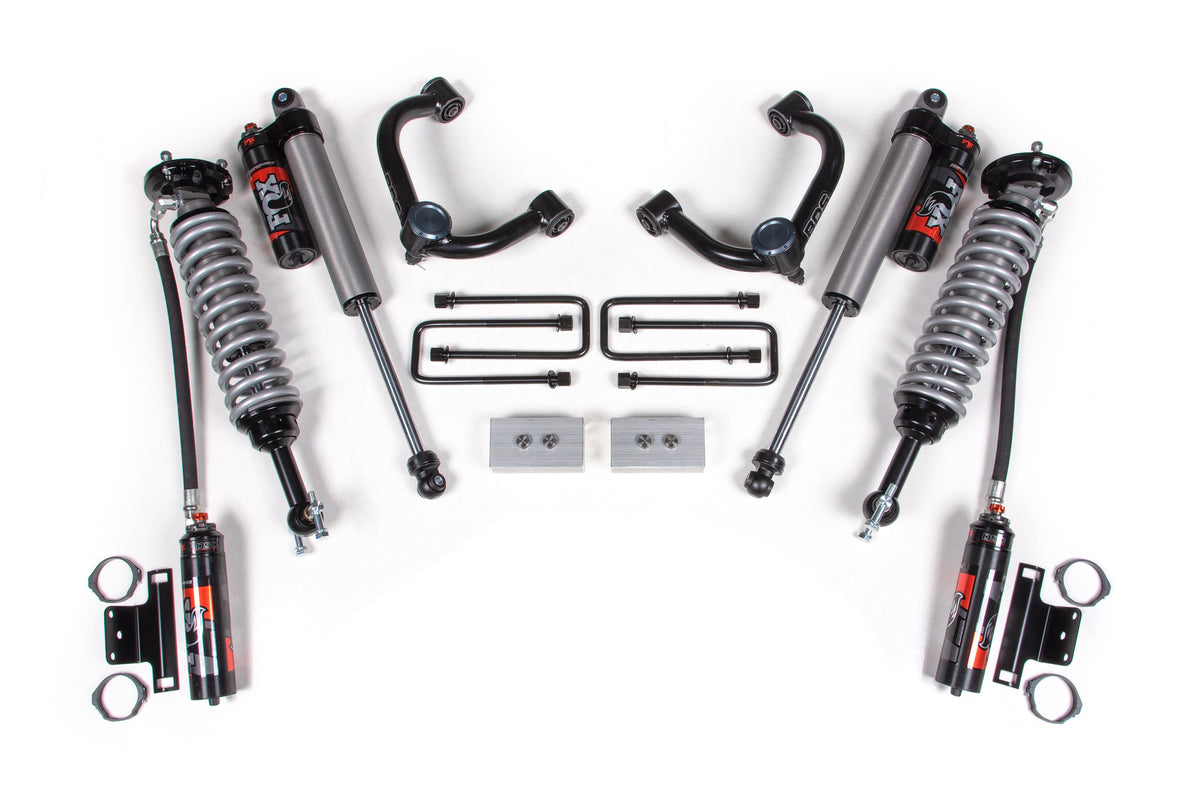

Up the ante in your 2014-2020 Ford F150 truck with style and performance by installing this 3-inch lift kit featuring FOX Performance Elite 2.5 coil-over shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch tires.
Up front the lift kit includes FOX 2.5 Performance Elite Series remote reservoir coil-over shocks and heavy duty tubular upper control arms for increased strength. In the rear this kit utilizes a complementary set of FOX 2.0 Performance shocks for the smoothest ride.
FOX Performance Elite
FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology.
They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.
HD Upper Control Arms (UCAs)
Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5 inch OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment.
At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.
Details:
-
Finish: Powdercoat
-
Color: Black
-
Front Lift Height: 3.0 Inch
-
Fuel Type: Gas
-
Lift Height: 3.0 Inch
-
Lift Type: Performance Lift
-
Engine Years: 2014-2020
Kit Components by Option:
FOX 2.0 Performance Series (BDS1588FPE):
- Includes one BDS013204, 2014-2020 Ford F150 Coilover 2 inch-3 inch Box kit, UPC Code 658848613113
- Includes one FOX88406317, Kit: BDS, 14-On F-150 4wd Front Coilover 2.5 PEF Series, R/R 5.5 inch 0-3 inch Lift, Dual Speed Compression Adjust, UPC Code 814897013506
- Includes two FOX98224651, Fox 2.0 Shock 27.95 x 17.35 x 2- EB1/EB1
