ICON Vehicle Dynamics is an industry leader when it comes to Ford Super Duty performance. Our engineers have spent countless hours under these trucks and behind the wheel developing some of the most refined suspension systems available.
Increasing wheel travel and ride comfort is standard operating procedure at ICON, but our engineers aimed high to produce a suspension solution that also maintained the Super Duty's towing capacity. ICON's 7 Inch Suspension System for the 2011-2016 Super Duty yields enough lift to clear 37 Inch tires while providing excellent ride characteristics across a wide variety of terrain on and off-road.

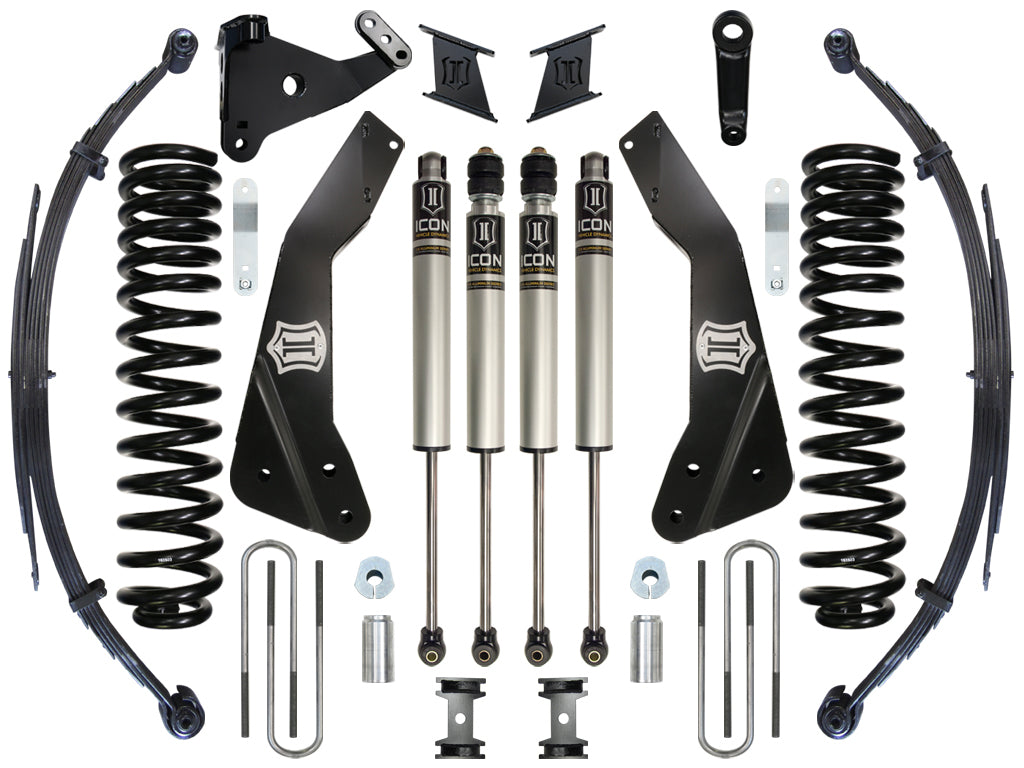

Each component of this suspension system has been specifically engineered to work in union with other ICON parts to extract maximum performance out of the vehicle. Our Stage 2 System is comprised of 7 Inch lift dual rate coil springs, fabricated radius arm drop mounts with brushed stainless badges, track bar drop bracket, bump stop extensions, sway bar links, a forged pitman arm, brake line brackets, rear 5 Inch lift progressive rate leaf springs w/ U-bolts, and 2.0 Aluminum Series smooth body front & rear shocks.
Features and Benefits:
- Increased wheel travel and ride quality over stock with no change in towing capacity
- Decreased body roll
- ICON engineered dual rate coil springs with match tuned 2.0 Aluminum Series shocks
- Hard anodized aluminum shock body with 5/8 Inch polished nitro steel shaft
- Heavy duty radius arm drop brackets
- Correctly positioned steering and track bar components
- Rear progressive design leaf pack for smooth compliant ride
- No drive shaft modifications needed
Details
- Bushings Included: Yes
- Coils Quantity Front: 2.0
- Dual Rate Coil Springs: Yes
- Grade Type: Performance
- Leaf Spring Leaf Quantity: 7.0
- Maximum Lift: 7.0 Inch
- Mounting Hardware Included: Yes
- Oem Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: 37 Inch X 12.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required.)
- Recommended Aftermarket Wheels: Icon Alloys - 18x9 Inch W/ 5.25 Inch Backspace / 6mm Offset, Icon Alloys - 17x8.5 Inch W/ 5 Inch Backspace / 6mm Offset, Icon Alloys - 20x9 Inch W/ 5.25 Inch Backspace / 6mm Offset
- Shocks Included: Yes
- Spring Color: Black
- Spring Material: Steel
