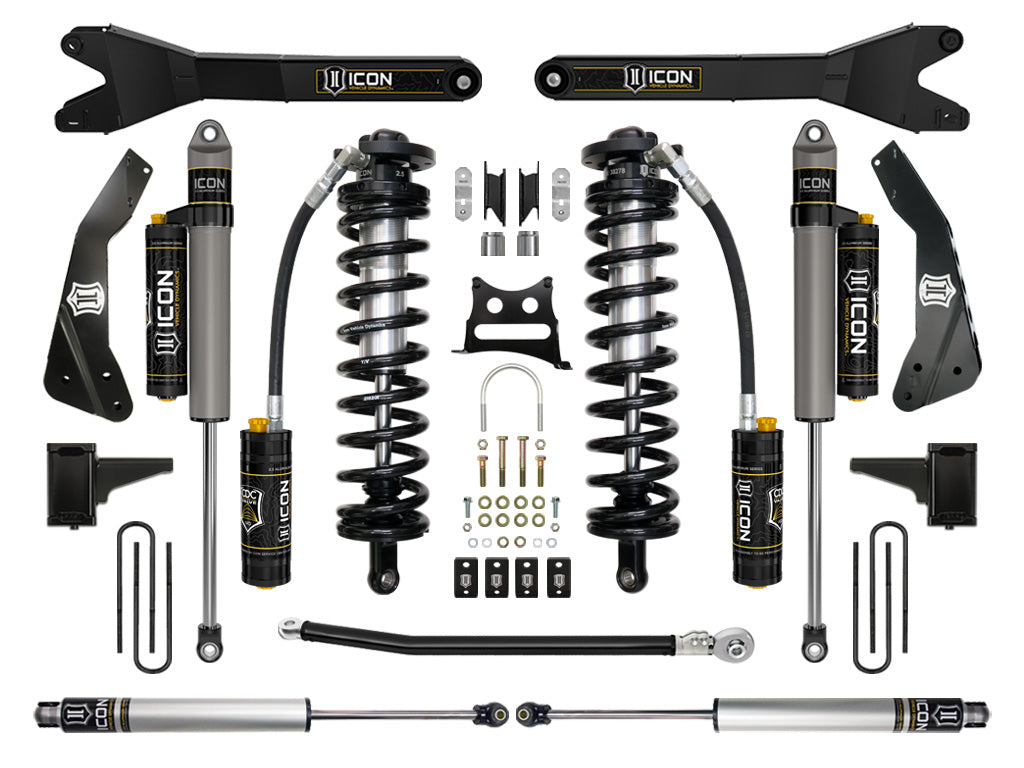

Designed to provide a height-adjustable option to the extremely popular ICON Vehicle Dynamics 4.5 Inch Ford Super Duty Suspension Systems, these coilover conversions provide excellent on-road ride quality and off-road performance while at the same time allowing for end-user ride height adjustability.
Features and Benefits:

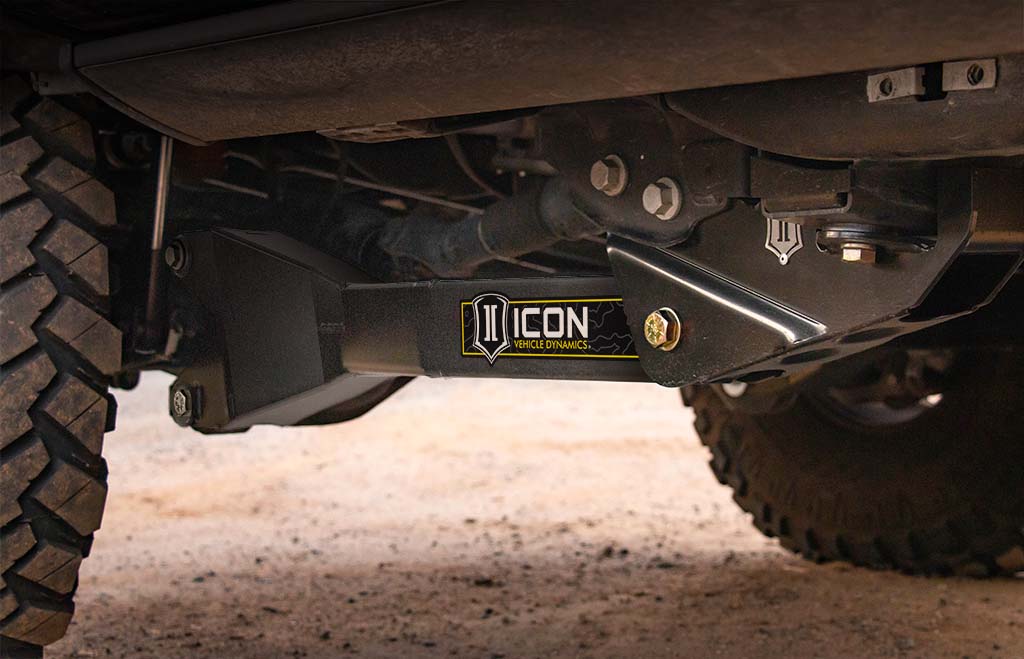

- This Stage 5 system sees the inclusion of the ICON Vehicle Dynamics Ford Super Duty Radius Arm System that feature a sealed pivot bushing that minimizes road feedback and ensures a long life and quiet operation. Additionally, their fabricated, fully boxed design ensures strength and utilizes a profile optimized for tire clearance at full steering lock, making a 37 Inch tall tire clear without coming in contact with the radius arm.
- Eibach coil springs guaranteed for life against sagging or breakage
- Corrosion resistant CAD plated coilover shock body with 7/8 Inch shaft
- Rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
- FK Rod End bearings for extended longevity and minimal deflection
- Bolt-in system fits in OE coil bucket location
- Ride height adjustable coilovers (4-5.5 Inch of lift over stock)
- Increased wheel travel and ride quality over stock
- Decreased body roll and improved on and off-road ride dynamics
- Vehicle-specific shock valving provides unparalleled ride quality and control
- Shocks are fully rebuildable and revalveable
- Coilover conversion allows for addition of secondary shock
- Fabricated radius arms with drop brackets offer on vehicle caster adjustment, increased strength, and improved tire clearance at steering lock
Details
- Bushings Included: Yes
- Coils Quantity Front: 2.0
- Grade Type: Performance
- Maximum Lift: 5.5 Inch
- Mounting Hardware Included: Yes
- Oem Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: 35 Inch X 12.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required.)
- Recommended Aftermarket Wheels: Icon Alloys - 20x9 Inch W/ 5.25 Inch Backspace / 6mm Offset, Icon Alloys - 17x8.5 Inch W/ 5 Inch Backspace / 6mm Offset, Icon Alloys - 18x9 Inch W/ 5.25 Inch Backspace / 6mm Offset
- Shocks Included: Yes
- Spring Color: Black
- Spring Material: Steel
- Add On Part: 191014 - .25 Inch Collar Spanner Pin Wrench, 64039 - 08-25 FSD Track Bar Bump Steer Bracket Kit, 198001 - Billet Spanner Wrench Kit, 614700 - 2.0 Shock Boot Kit (Each), 198000 - 2 Pin Coilover Spanner Wrench Kit
