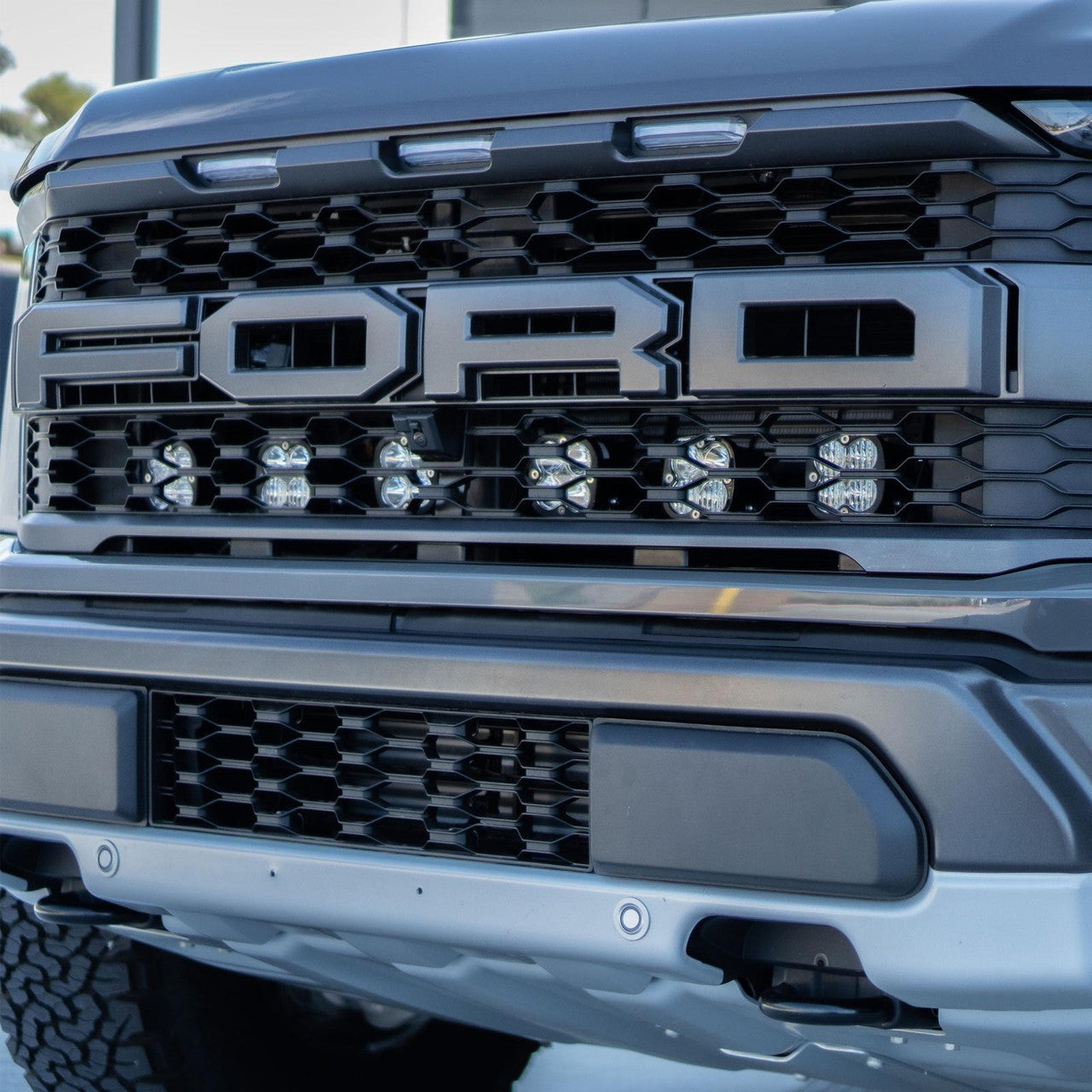

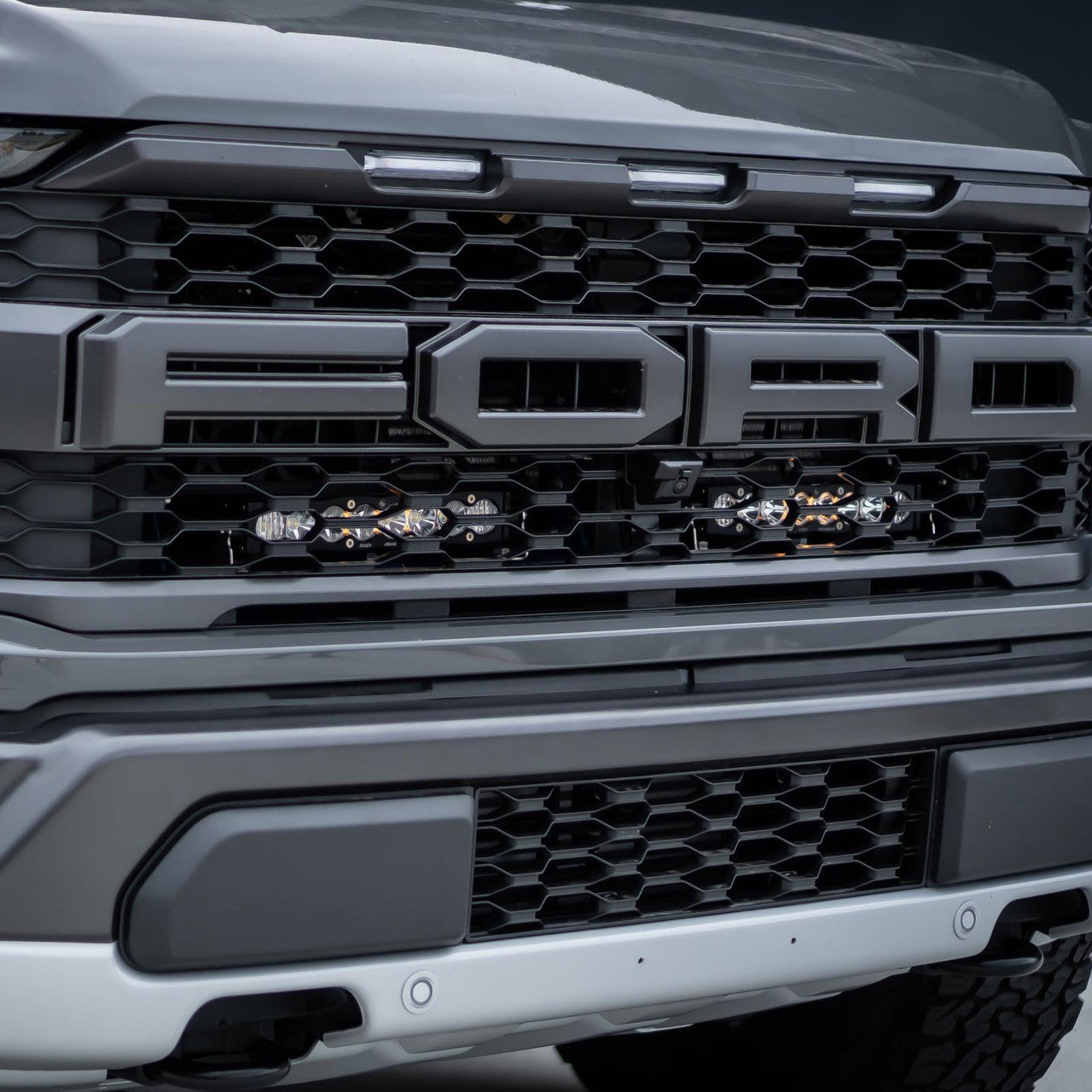

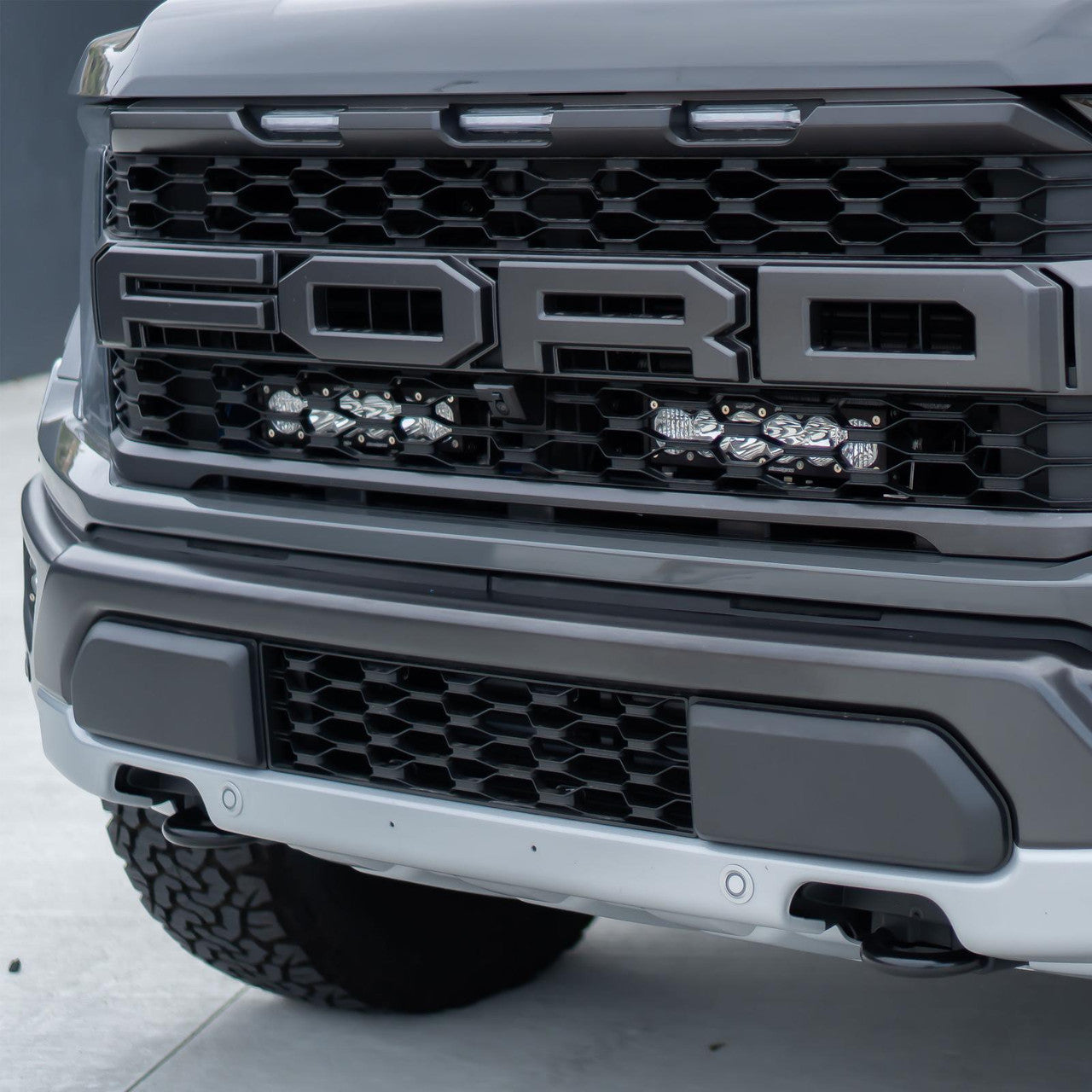

Baja Designs' 2021+ Ford Raptor Behind the Grill kits were designed with both functionality and visual appeal in mind. This kit offers two Clear 10 Inch Onx6 LED light bars, mounting brackets, and hardware.
To give these kits and easier wiring installation each kit includes an up-fitter harness that will allow you to tap your lights into the factory up-fitter switches.
Baja Designs Features:
- Satisfactions Guarantee30 Day Money Back Guarantee
- Limited Lifetime WarrantyComplete Purchase Protection
- uService Replaceable Lenses And Optics
- ClearView All The Light, Right Where You Need It.
- MoistureBlock Waterproof, Rain Proof, Submersible
- CopperDrive Only LED Driven At 100 percent
- 5000K DaylightLess Driver Fatigue, Natural Color
Specifications:
- Lumens: (High) 12,460 (Low) 9,230 Utilizing 6 LEDs
- Wattage/Amps: (High) 108W / 8.4A (Low) 80W / 5.7A
- Dimensions: 10 Inch x 4.29 Inch x 2.69 Inch
- Weight: 4.25 lbs
- LED Life Expectancy: 49,930 Hours
- Front Lens: Hard Coated Polycarbonate
- Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
- Bezel: Billet Machined Aluminum
- Hardware and Bracket Material: Stainless Steel
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof up to 9ft and Pressure Washable)
- IK10 Compliant (Mechanical Impact Testing)
Applications:
2021+ Ford Raptor

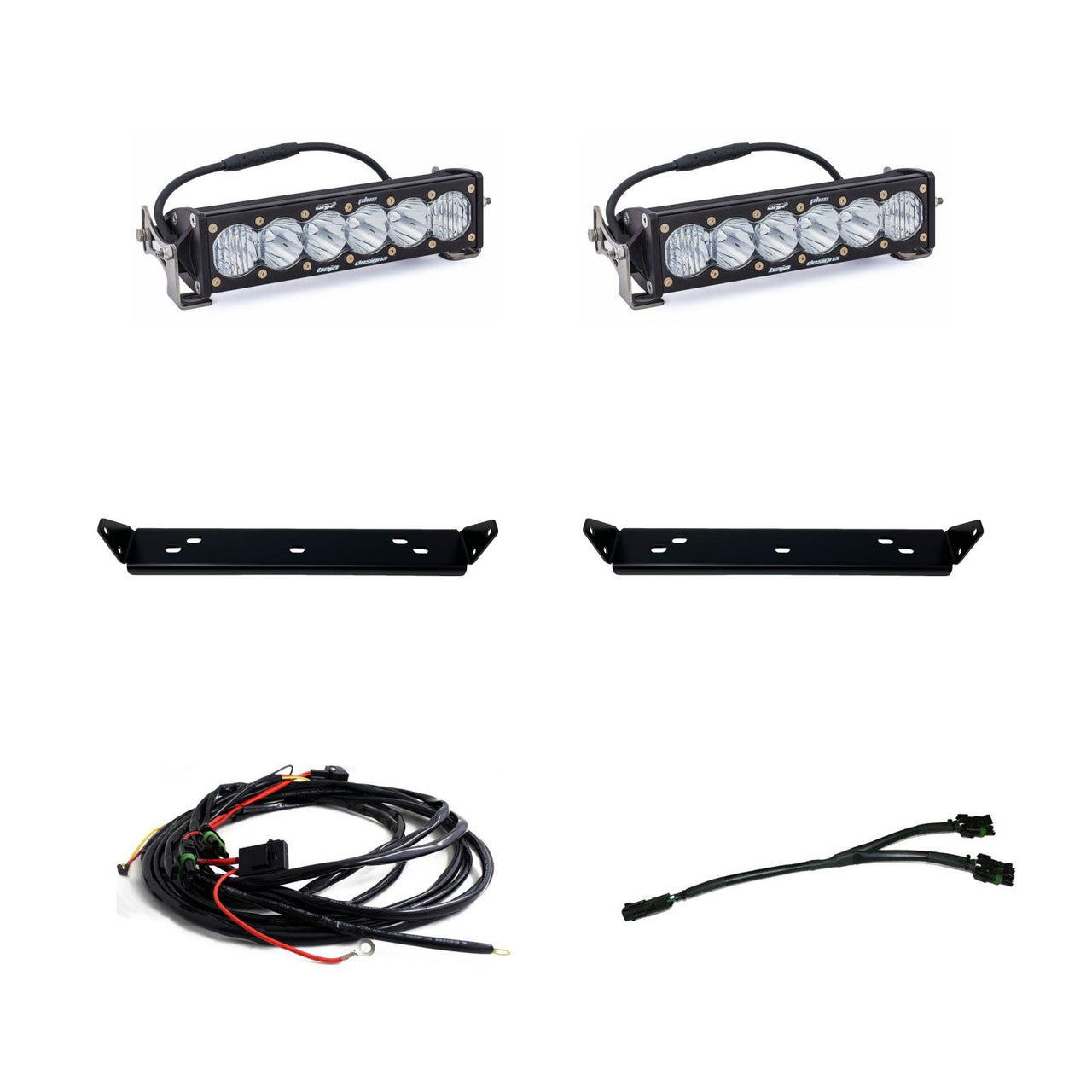

Included:
- x2 Clear Onx6 10 Inch in Driving Combo
- x1 Wiring Harness
- x1 Wiring Harness Splitter
- x2 Mounting Brackets
- All necessary hardware
Patterns:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42 Degree) and spot (9 Degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42 Degree flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 and 2)
Spot: A longer and narrower 9 Degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 and 5)
