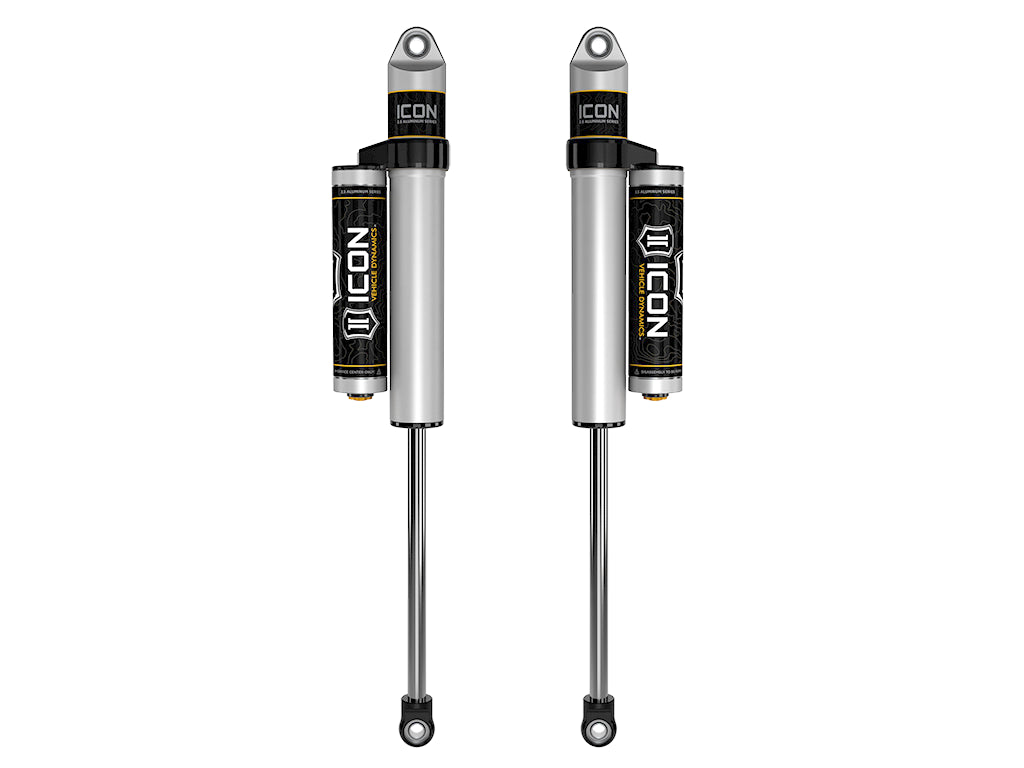

ICON's 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. With a truly vehicle-specific design, these shocks are configured specifically for each application in both length and damping tune.
Featuring one-piece impact extruded aluminum cylinders, these 2.5 Aluminum Series shocks offer lighter weight, improved corrosion resistance, and a more uniform finish than traditional plated steel cylinders. Like all ICON shock absorbers, these 2.5 Aluminum Series shocks are 100 Percent rebuildable and 100 Percent revalveable.
For piggyback and specific remote reservoir applications, ICON's unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal InchBump Zone Inch that when used creates an additional 20 Percent of damping force. This additional force helps prevent harsh bottom-out conditions and controls the suspension effectively when compressing at high velocity.
If you are looking for a more user-defined tune, consider looking into the Compression Damping Control Valve (CDCV) shocks.
Features and Benefits:
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
- Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
- Double-sealed Schrader caps reduce risk of damage
- 6061 aircraft grade aluminum CNC machined components
- ICON's internal InchBump Zone Inch increases damping by 20 Percent to provide more control as the shock approaches full compression
- 7/8 Inch diameter induction hardened, chrome plated shock shaft
- PTFE lined spherical bearings and application specific mounting hardware
- All ICON 2.5 Series Piggyback and Remote Reservoir shocks can be upgraded to ICON's Compression Damping Control Valve (CDCV)
- One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- 100 Percent Revalveable
- Nitrogen charged monotube design with piggyback reservoir
- 100 Percent Rebuildable
Details
- Adjustable: No
- Boot Included: No
- Bore Diameter: 2.25
- Cylinder Color: Silver
- Cylinder Material: Aluminum
- Damping Type: Oil
- External Reservoir: Yes
- Gas Charged: Yes
- Grade Type: Performance
- Lower Mount Type: Eyelet
- Mounting Hardware Included: Yes
- Service Parts: 254100G - 1 Gallon Icon Performance Shock Oil, 257342 - 7/8 Shaft 16.85 Oal, 12.00 Travel, 252003 - Seal Install Tool 2.5/3.0, 252002 - Universal Spanner Wrench (2.0/2.5/3.0), 252001 - 2.5 Fixed Spanner Wrench, 252011 - 2.5 Piggyback/Remote Resi/Bypass Rebuild Kit, 191015 - 10 Inch Finned Resi Upgrade Kit
- Shaft Diameter: 0.875
- Shaft Material: Chrome
- Shock Absorber Body End Measuring Point: Center Of Eylet
- Shock Absorber Rod End Measuring Point: Center Of Eylet
- Tube Outside Diameter: 2.5
- Upper Mount Type: Eyelet
