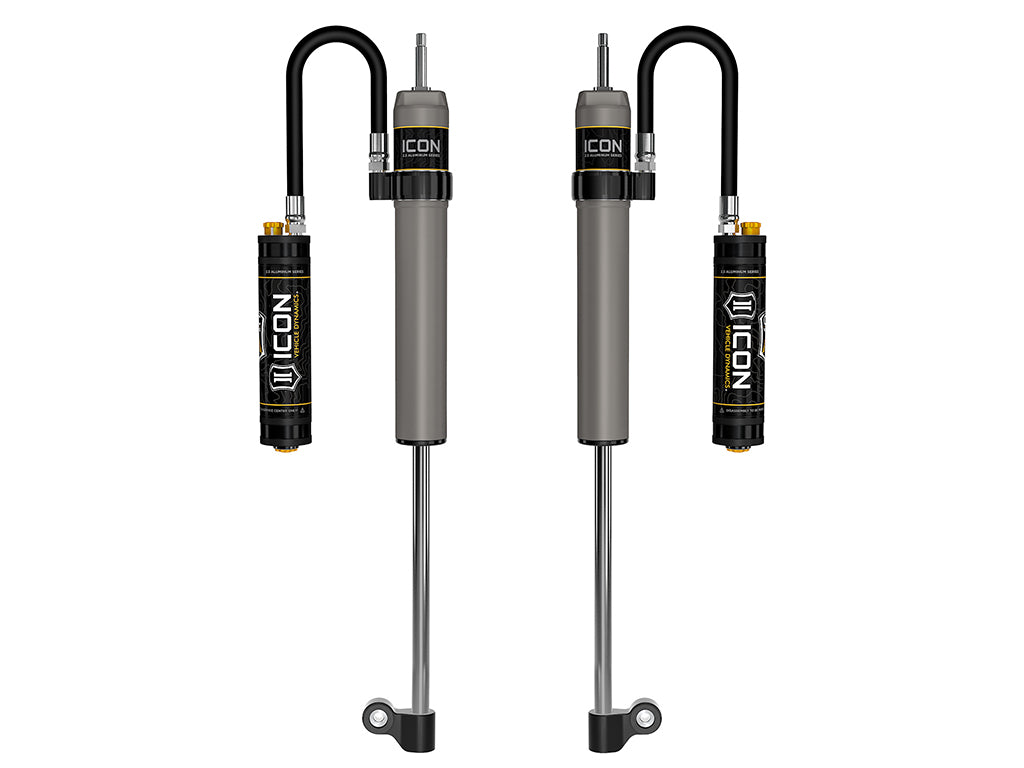

ICON's 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. With a truly vehicle-specific design, these shocks are configured specifically for each application in both length and damping tune.
Featuring one-piece impact extruded aluminum cylinders, these 2.5 Aluminum Series shocks offer lighter weight, improved corrosion resistance, and a more uniform finish than traditional plated steel cylinders. Like all ICON shock absorbers, these 2.5 Aluminum Series shocks are 100 Percent rebuildable and 100 Percent revalveable.
For piggyback and specific remote reservoir applications, ICON's unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal InchBump Zone Inch that when used creates an additional 20 Percent of damping force. This additional force helps prevent harsh bottom-out conditions and controls the suspension effectively when compressing at high velocity.
The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. If you are looking for a more user defined tune, consider looking into the Omega Series bypass shocks.
Features and Benefits:
- 6061 aircraft grade aluminum CNC machined components
- ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
- Nitrogen charged monotube design with piggyback reservoir
- One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
- ICON's internal InchBump Zone Inch increases damping by 20 Percent to provide more control as the shock approaches full compression
- One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- 7/8 Inch diameter induction hardened, chrome plated shock shaft
- 100 Percent Rebuildable
- Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
- Double-sealed Schrader caps reduce risk of damage
- PTFE lined spherical bearings and application specific mounting hardware
- 100 Percent Revalveable
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
Details
- Adjustable: Yes
- Boot Included: No
- Bore Diameter: 2.25
- Cylinder Color: Silver
- Cylinder Material: Aluminum
- Damping Type: Oil
- External Reservoir: Yes
- Gas Charged: Yes
- Grade Type: Performance
- Lower Mount Type: Eyelet
- Mounting Hardware Included: Yes
- Service Parts: 252011 - 2.5 Piggyback/Remote Resi/Bypass Rebuild Kit, 252001 - 2.5 Fixed Spanner Wrench, 191015 - 10 Inch Finned Resi Upgrade Kit, 254100G - 1 Gallon Icon Performance Shock Oil, 252002 - Universal Spanner Wrench (2.0/2.5/3.0), 252003 - Seal Install Tool 2.5/3.0, 611008 - 9/16 RXT Heavy Duty Stem Bushing Kit, 257342 - 7/8 Shaft 16.85 Oal, 12.00 Travel
- Shaft Diameter: 0.875
- Shaft Material: Chrome
- Shock Absorber Body End Measuring Point: Center Of Eylet
- Shock Absorber Rod End Measuring Point: Center Of Eylet
- Tube Outside Diameter: 2.5
- Upper Mount Type: Stem
- Add On Part: 252012 - -4 To -10 Hose Shield Kit
