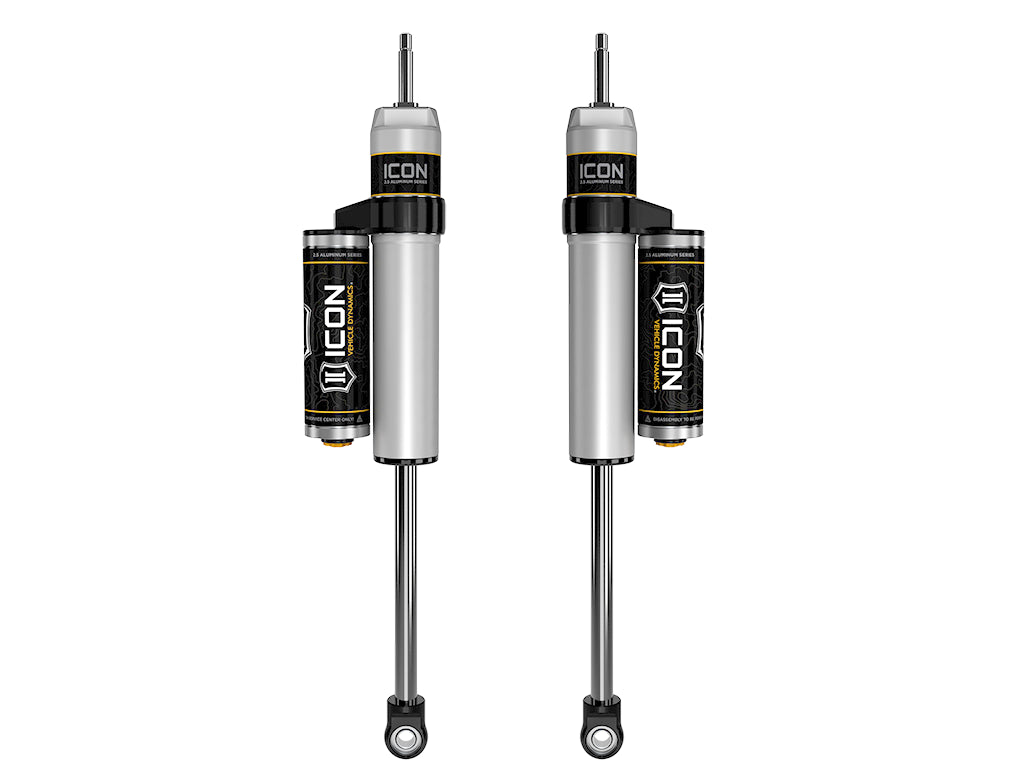

ICON's 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune.
Featuring one-piece impact extruded aluminum cylinders, these 2.5 Aluminum Series shocks offer lighter weight, improved corrosion resistance, and a more uniform finish than traditional plated steel cylinders. Like all ICON'S Shock Absorbers, V.S. 2.5 Series shocks are 100 Percent rebuildable and 100 Percent revalveable.
For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20 Percent of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity.
If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDCV) or the Omega Series bypass shocks.
Features and Benefits:
- Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
- One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
- All ICON 2.5 Series Piggyback and Remote Reservoir shocks can be upgraded to ICON's Compression Damping Control Valve (CDCV)
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- 7/8 Inch diameter induction hardened, chrome plated shock shaft
- PTFE lined spherical bearings and application specific mounting hardware
- 100 Percent Rebuildable
- ICON's internal InchBump Zone Inch increases damping by 20 Percent to provide more control as the shock approaches full compression
- Nitrogen charged monotube design with piggyback reservoir
- Double-sealed Schrader caps reduce risk of damage
- 6061 aircraft grade aluminum CNC machined components
- 100 Percent Revalveable
Details
- Adjustable: No
- Boot Included: No
- Bore Diameter: 2.25
- Cylinder Color: Silver
- Cylinder Material: Aluminum
- Damping Type: Oil
- External Reservoir: Yes
- Gas Charged: Yes
- Grade Type: Performance
- Lower Mount Type: Eyelet
- Mounting Hardware Included: Yes
- Service Parts: 252003 - Seal Install Tool 2.5/3.0, 611007 - 9/16 Medium Duty Stem Bushing Kit, 257340 - 7/8 Shaft 14.25 Oal, 10.00 Travel, 254100G - 1 Gallon Icon Performance Shock Oil, 252011 - 2.5 Piggyback/Remote Resi/Bypass Rebuild Kit, 252001 - 2.5 Fixed Spanner Wrench, 191016 - 7.5 Inch Finned Resi Upgrade Kit, 252002 - Universal Spanner Wrench (2.0/2.5/3.0)
- Shaft Diameter: 0.875
- Shaft Material: Chrome
- Shock Absorber Body End Measuring Point: Shoulder Of Stem
- Shock Absorber Rod End Measuring Point: Center Of Eyelet
- Tube Outside Diameter: 2.5
- Upper Mount Type: Stem
