Description

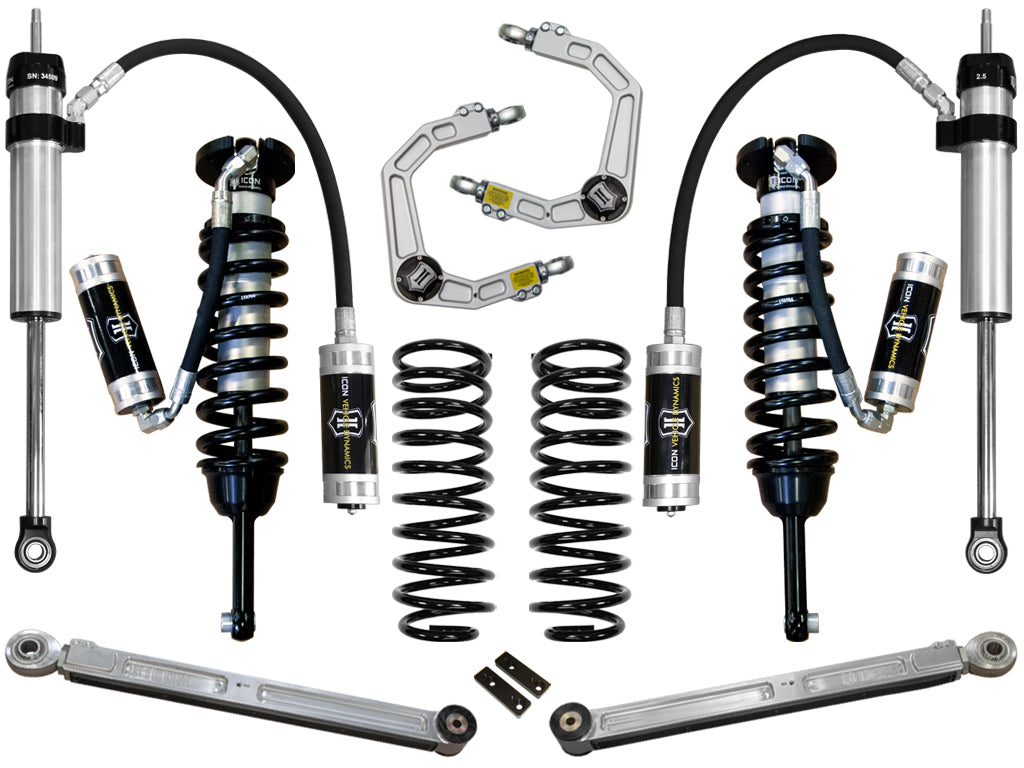

ICON's 2003-2009 Toyota 4Runner/2007-2009 FJ Cruiser Stage 5 suspension system provides a significant increase to the on and off-road performance of the vehicle. This system includes the components featured in the Stage 4 setup Inch ICON billet aluminum Delta Joint upper control arm kit, 2.5 Aluminum Series Remote Reservoir rear shocks, 2 Inch rear coil springs, and a tubular rear lower link arm kit - but sees the addition of extended travel 2.5 Series Remote Reservoir coilover shocks for balanced damping characteristics front to rear.
The remote reservoir design allows for increased shock oil volume and enhanced cooling so that the rear of the vehicle can work harder for longer durations without noticeable Inchfade Inch occurring. The 2.5 Aluminum Series Remote Reservoir rear shocks also feature ICON's InchBump Zone Inch technology which significantly increases damping ability in the last 2 Inch of compression travel, preventing harsh bottom-out sensation and giving the vehicle a much more controlled ride quality over varying terrain.
ICON's billet aluminum lower links are much stronger than the OE units, feature a greaseable dual stage bushing, and can be fine-tuned on the vehicle with ICON's double adjuster for optimum pinion angle. On top of it all, these links have been designed to provide correct roll steer geometry for the best possible handling on and off-road.
Features and Benefits:- This system features upper control arms with ICON's patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.
- Increased wheel travel and ride quality over stock
- Bolt-on system means no cutting or welding necessary for install
- Vehicle specific tuned front and rear shocks for superior shock damping and control
- Adjustable coilovers provide 0-3.5 Inch of front lift height
- Extended Travel remote reservoir coilovers matched with ICON UCAs provide increased front droop travel
- Billet Aluminum rear lower links offer on vehicle pinion angle adjustment
- 6061 aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock body with 7/8 Inch shaft
- FK Rod End bearings for extended longevity and minimal deflection
- 2.5 Aluminum Series remote reservoir rear shocks with 7/8 Inch shafts
- Bushings Included: Yes
- Coils Quantity Front: 2.0
- Coils Quantity Rear: 2.0
- Grade Type: Performance
- Maximum Lift: 3.5 Inch
- Mounting Hardware Included: Yes
- Oem Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: 33 Inch X 11.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required.)
- Recommended Aftermarket Wheels: Icon Alloys - 18x9 Inch W/ 5 Inch Backspace / 0mm Offset, Icon Alloys - 20x9 Inch W/ 5 Inch Backspace / 0mm Offset, Icon Alloys - 17x8.5 Inch W/ 4.75 Inch Backspace / 0mm Offset
- Shocks Included: Yes
- Spring Color: Black
- Spring Material: Steel
- Spring Rate: 650.0
- Add On Part: 198000 - 2 Pin Coilover Spanner Wrench Kit, 191014 - .25 Inch Collar Spanner Pin Wrench, 191011 - Tubular UCA Billet Cap Set, 198001 - Billet Spanner Wrench Kit, 252008 - 2.5 X 13 Shock Boot Black (Pair), 191003 - Icon Short 2.5 Coil Wrap W/Logo Pair (11.25-12.25)
