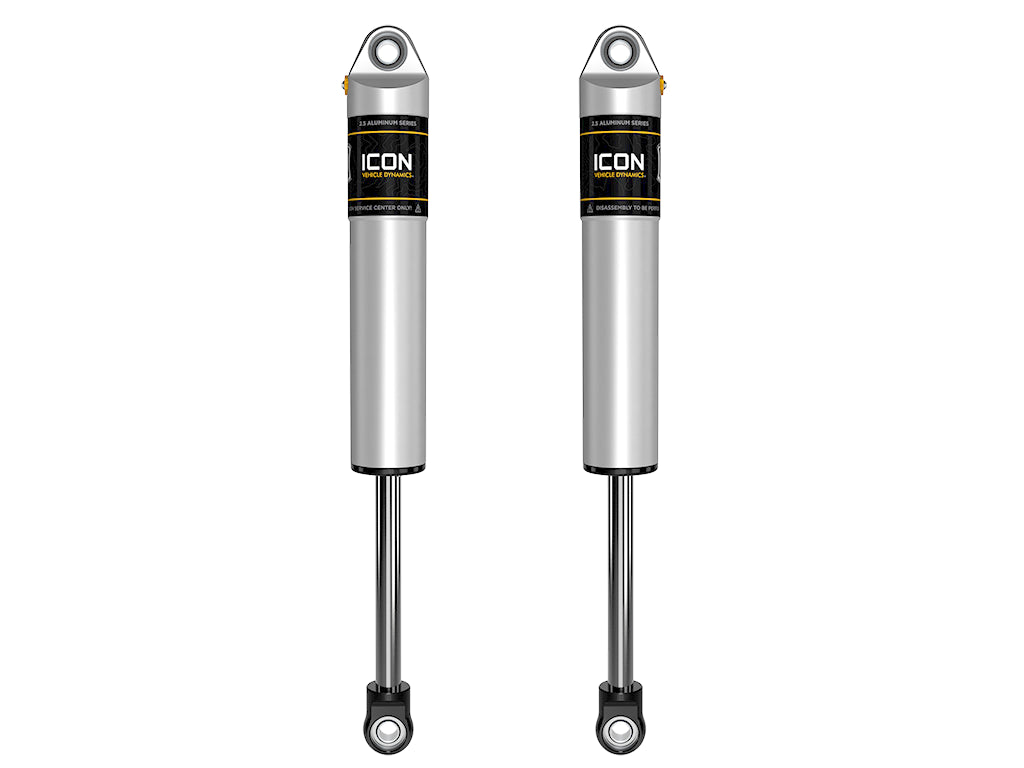

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune.
Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100 Percent rebuildable and 100 Percent revalveable. The larger diameter and oil volume of ICON 2.5 IR Series shocks provide better ride quality and heat dissipation properties than the standard 2.0 Aluminum Series IR Shocks.
If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDC Valve) shocks.
Features and Benefits:
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- Nitrogen charged monotube design with internal reservoir
- One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- 7/8 Inch diameter induction hardened, chrome plated shock shaft
- PTFE lined spherical bearings and application specific mounting hardware
- 6061 aircraft grade aluminum CNC machined components
- One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
- Increase in strength and heat dissipation when compared to ICON V.S. 2.0 Series shocks
- 100 Percent Rebuildable
- 100 Percent Revalveable
Details
- Adjustable: No
- Boot Included: No
- Bore Diameter: 2.25
- Cylinder Color: Silver
- Cylinder Material: Aluminum
- Damping Type: Oil
- External Reservoir: No
- Gas Charged: Yes
- Grade Type: Performance
- Lower Mount Type: Eyelet
- Mounting Hardware Included: Yes
- Service Parts: 252001 - 2.5 Fixed Spanner Wrench, 257305 - 7/8 Shaft 13.00 Oal, 8.75 Travel, 254100G - 1 Gallon Icon Performance Shock Oil, 252010 - 2.5 Ifp Rebuild Kit, 252002 - Universal Spanner Wrench (2.0/2.5/3.0), 252004 - Economy Needle Charging Tool, 252003 - Seal Install Tool 2.5/3.0
- Shaft Diameter: 0.875
- Shaft Material: Chrome
- Shock Absorber Body End Measuring Point: Center Of Eylet
- Shock Absorber Rod End Measuring Point: Center Of Eylet
- Tube Outside Diameter: 2.5
- Upper Mount Type: Eyelet
- Add On Part: 252008 - 2.5 X 13 Shock Boot Black (Pair)
